House CC · design handbook

A big house, folded into 92 square metres

Two bedrooms and a study, two bathrooms, a 38 m² great room with a fireplace, 2.7 m ceilings, a 21 m² garage. One fixed shell, three interiors, two kinds of lot.

Request the feasibility read Go to the floor plans

Dwelling: 91.2 m² outer frame
Main block: 11.0 × 7.5 m + 3.1 × 2.8 m bay
Garage: 3.5 × 6.0 m clear · 21 m²
Bedrooms: 2 + study
Bathrooms: 2
Ceiling: 2.7 m throughout
Delivery: 2 modules + 1 bay pod + garage kit
Class: NCC Class 1a · single storey

Keep the front house, add one

Lot: 18 × 32 m = 576 m² · keep the front house, add one
Garden area: ≈ 380 m² · 37% (30% required)
Tree canopy: 10% = 58 m² · lot at or under 1,000 m²

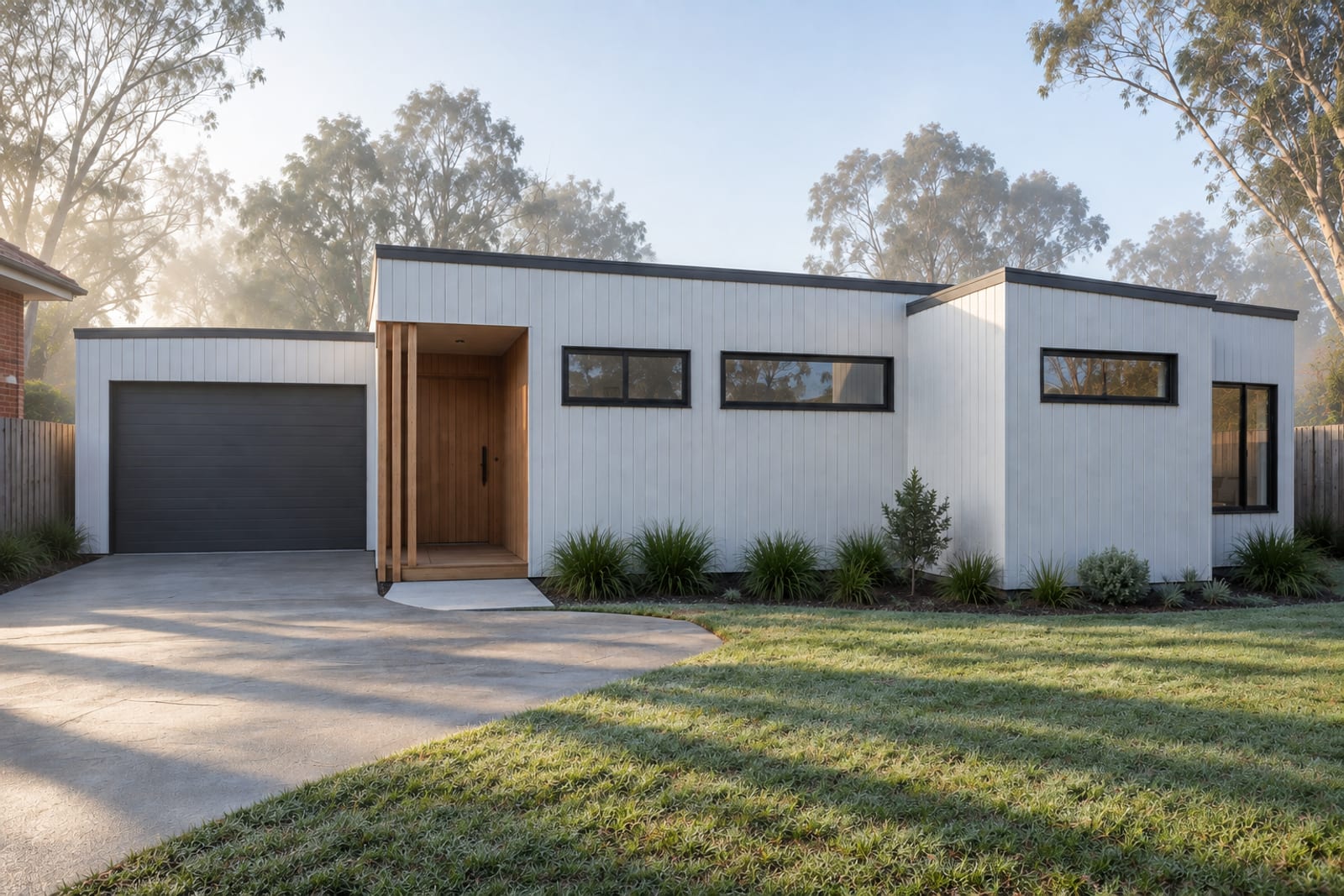

Design render — AI concept view of the fixed front, not a survey drawing

Why this house

The rules the shape was drawn to

Every line answers a constraint real Melbourne lots impose: a 3 m driveway, a rear boundary 2 m behind the wall, a garage on the boundary, a second dwelling that still reads as a home from the shared court. The luxury is in what the 92 m² are spent on.

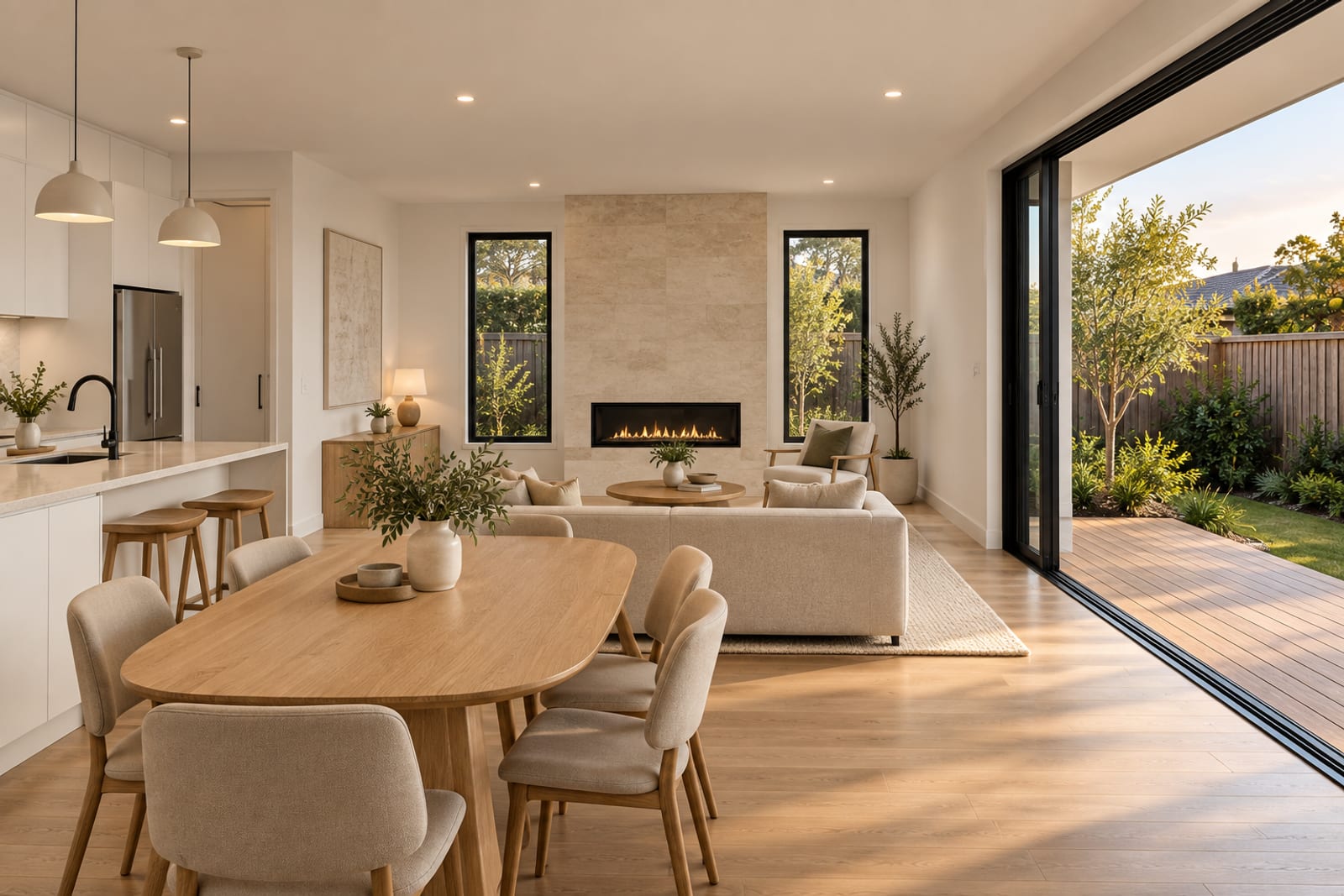

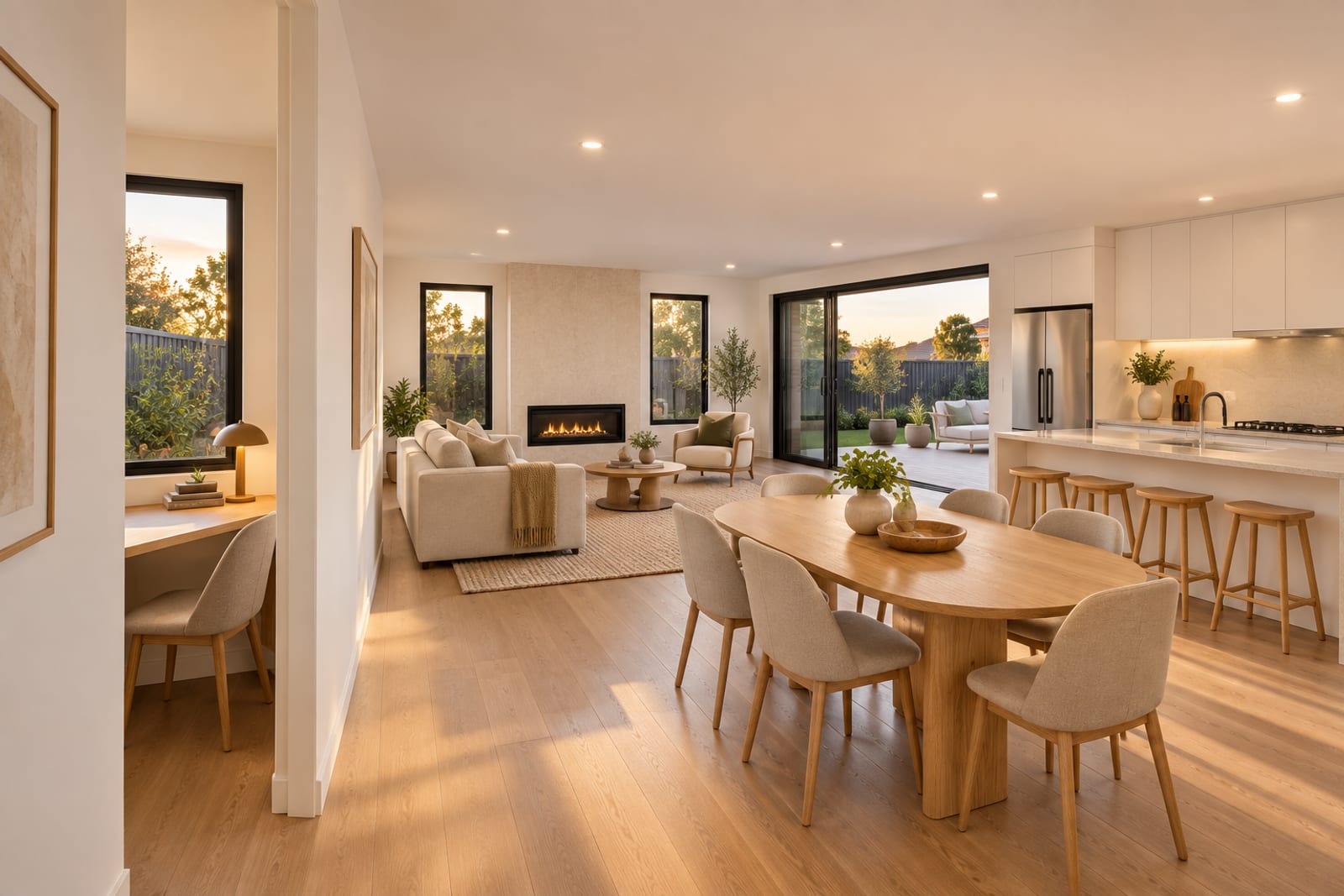

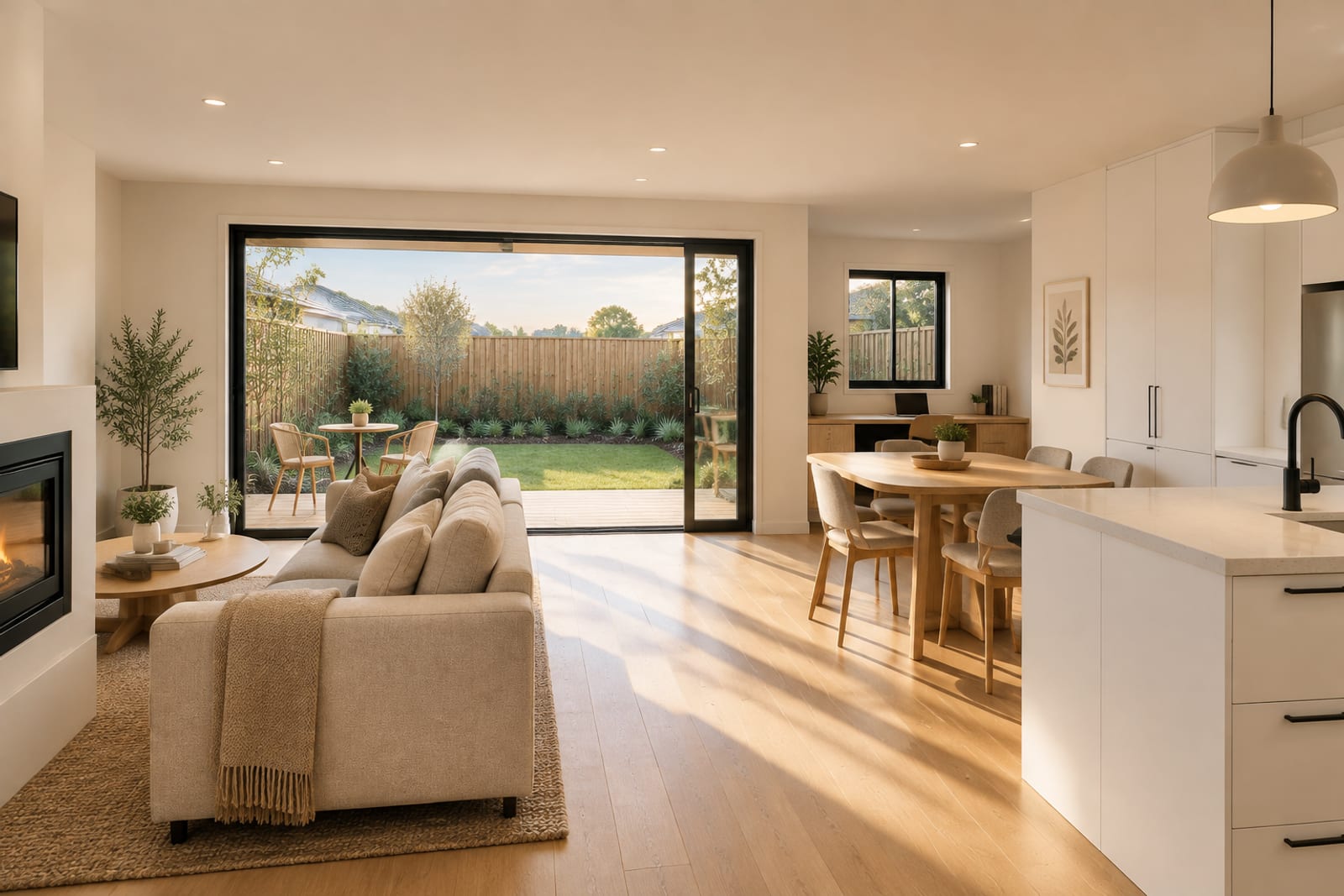

One great room

38 m² of kitchen, dining and living in one volume under a 2.7 m ceiling, with a 2.8 m sliding door to the garden strip.

The fireplace is the address

A slim gas fireplace in a stone panel on the north wall, on axis with the front door, a window either side.

Bedrooms at opposite ends

Nobody walks past a bedroom to reach the living room. The master suite has the bay: dressing room and ensuite.

Borrow the study

A desk under its own window in Plan A, a glazed 4.2 m² room in Plan B, a nook in the bay in Plan C. Never a lost bedroom.

A corner portico, open two ways

Open to the court and to the driveway, which is why the garage sits 1.1 m behind the façade — and why the same entry works when the garage moves.

Hipped roof on timber trusses

With the truss roof, the modules travel flat-topped. Local trades fit the timber trusses, roof sheets, gutters and eave lining after the crane.

The east side — sliding door, deck, private strip

It is not a compromise version of a bigger house. It is the bigger house with the corridors removed.

Site fit

Drawn for two lots at once

Same shell, same bay, same corner entry. Only the garage kit and the direction you arrive from change.

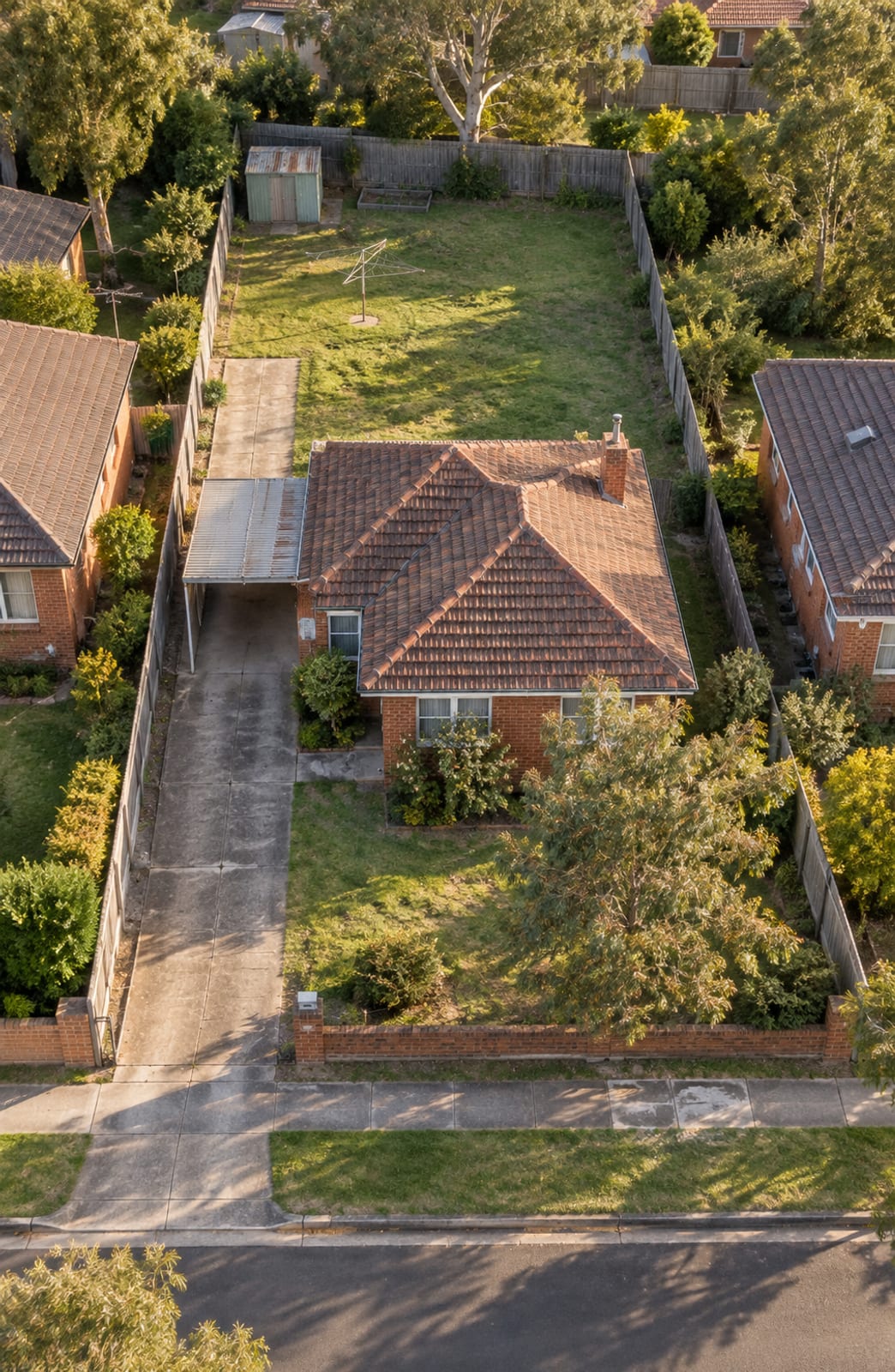

18 × 32 m, existing house kept at the front, 3 m driveway up the west side

Selected

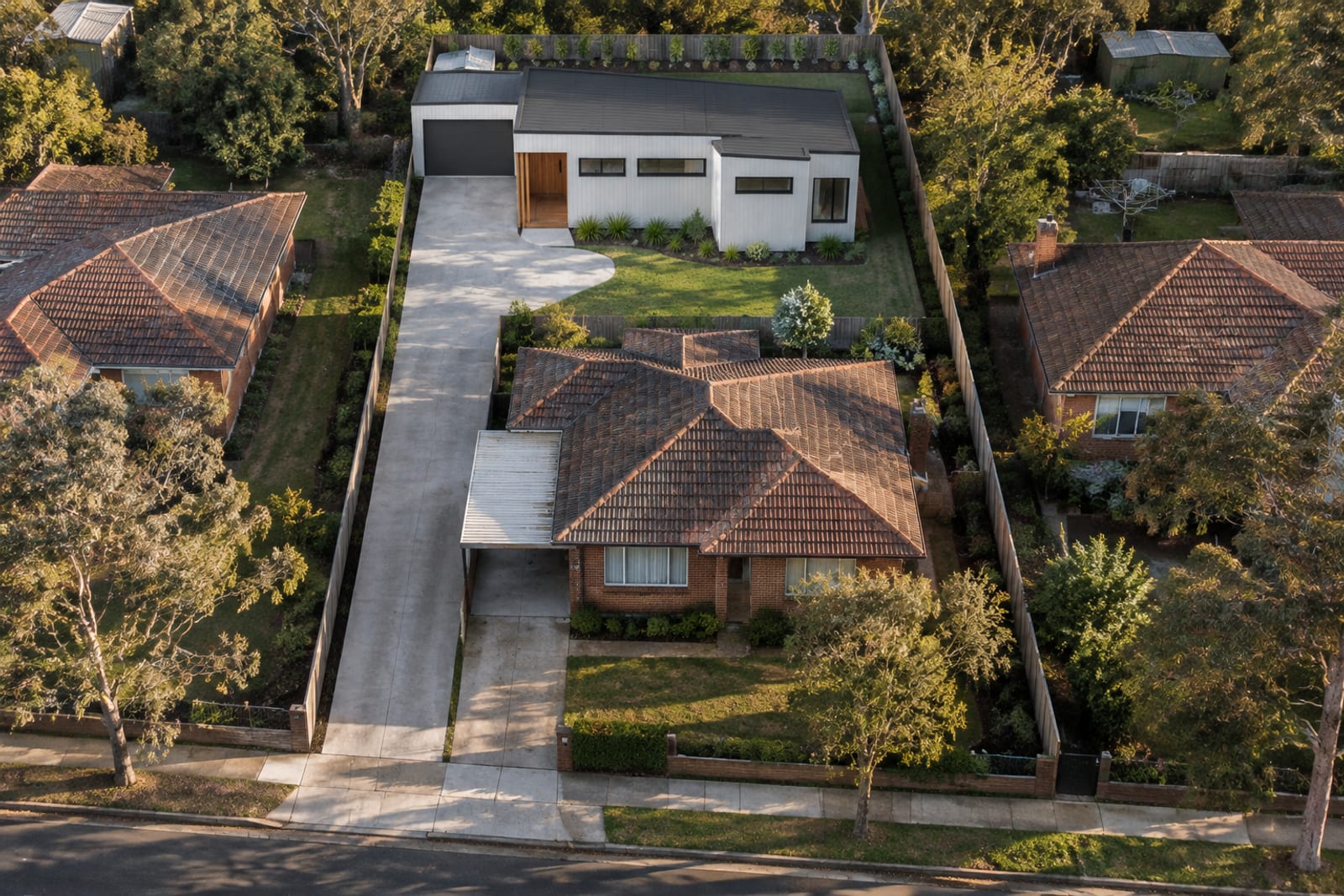

Scenario 1 · The backyard lot

The rear wall sits 2 m from the back boundary (1 m sewer easement plus 1 m buffer), the garage on the west boundary, the bay toward the shared turning court. Every window facing the court is a highlight with a 1.5 m sill; the living room and the master look east onto a 3.1 m private strip.

Lot: 18 × 32 m = 576 m²
Driveway: 3.9 m strip, 3.0 m clear beside the front house
Rear clearance: 1 m easement + 1 m buffer = 2 m
Turning court: 7.8 × 3.9 m, shared with the front carport
Private open space: 3.1 × 11.4 m = 35 m², off the living room
Garage: West boundary, door facing the driveway

18 × 56.67 m, the same module repeated four times down a 3 m driveway

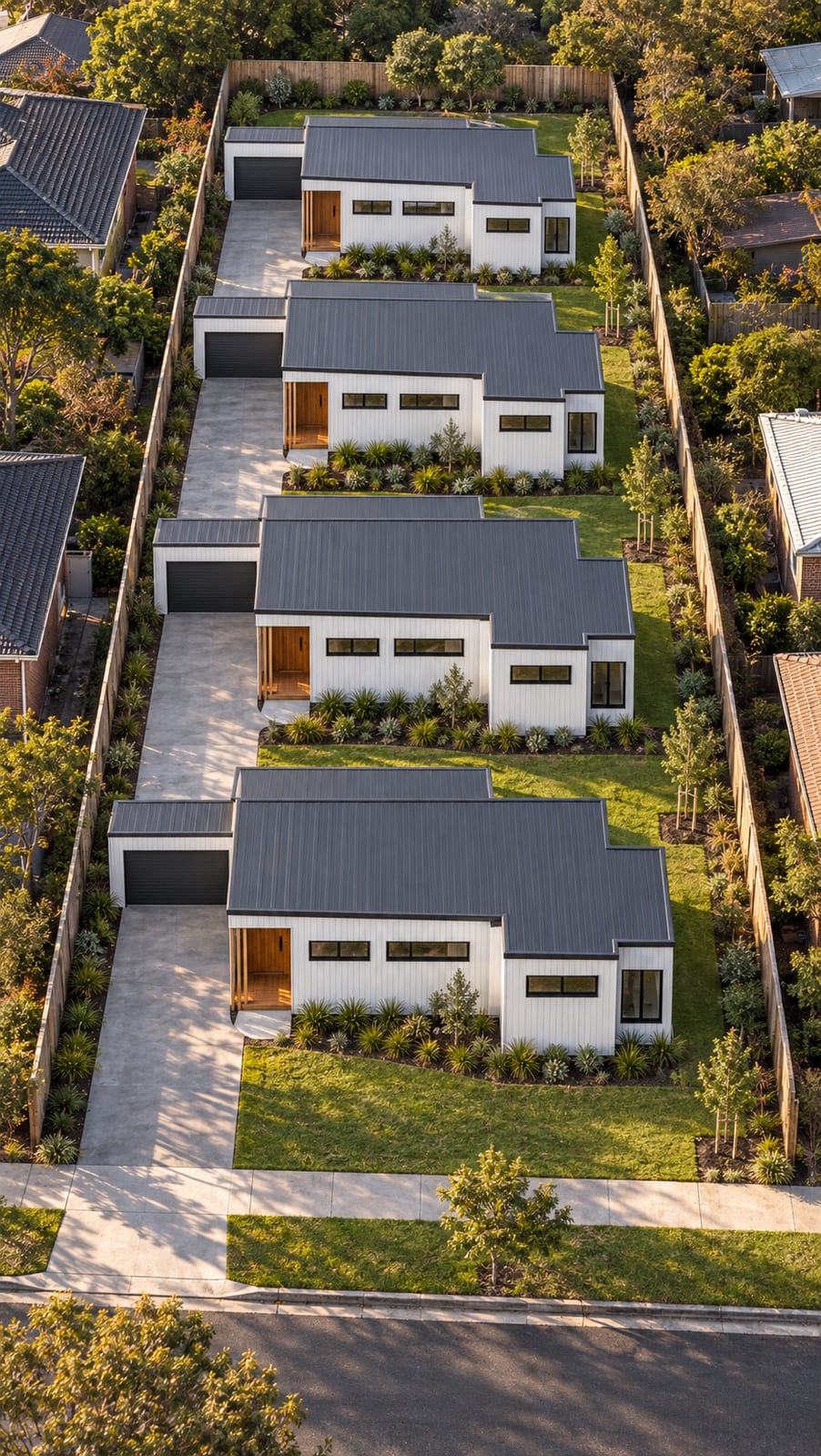

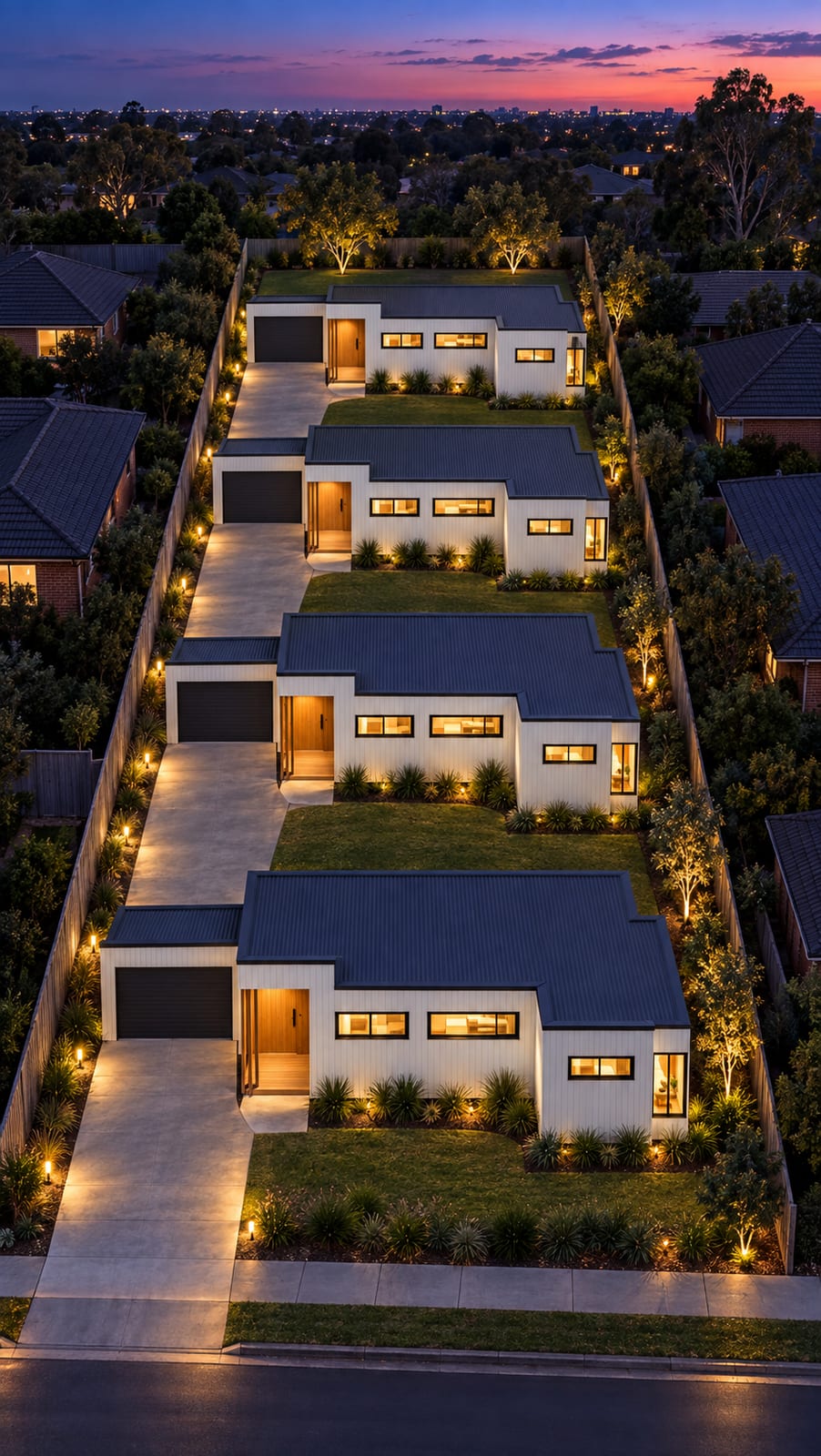

Scenario 2 · Four in a row

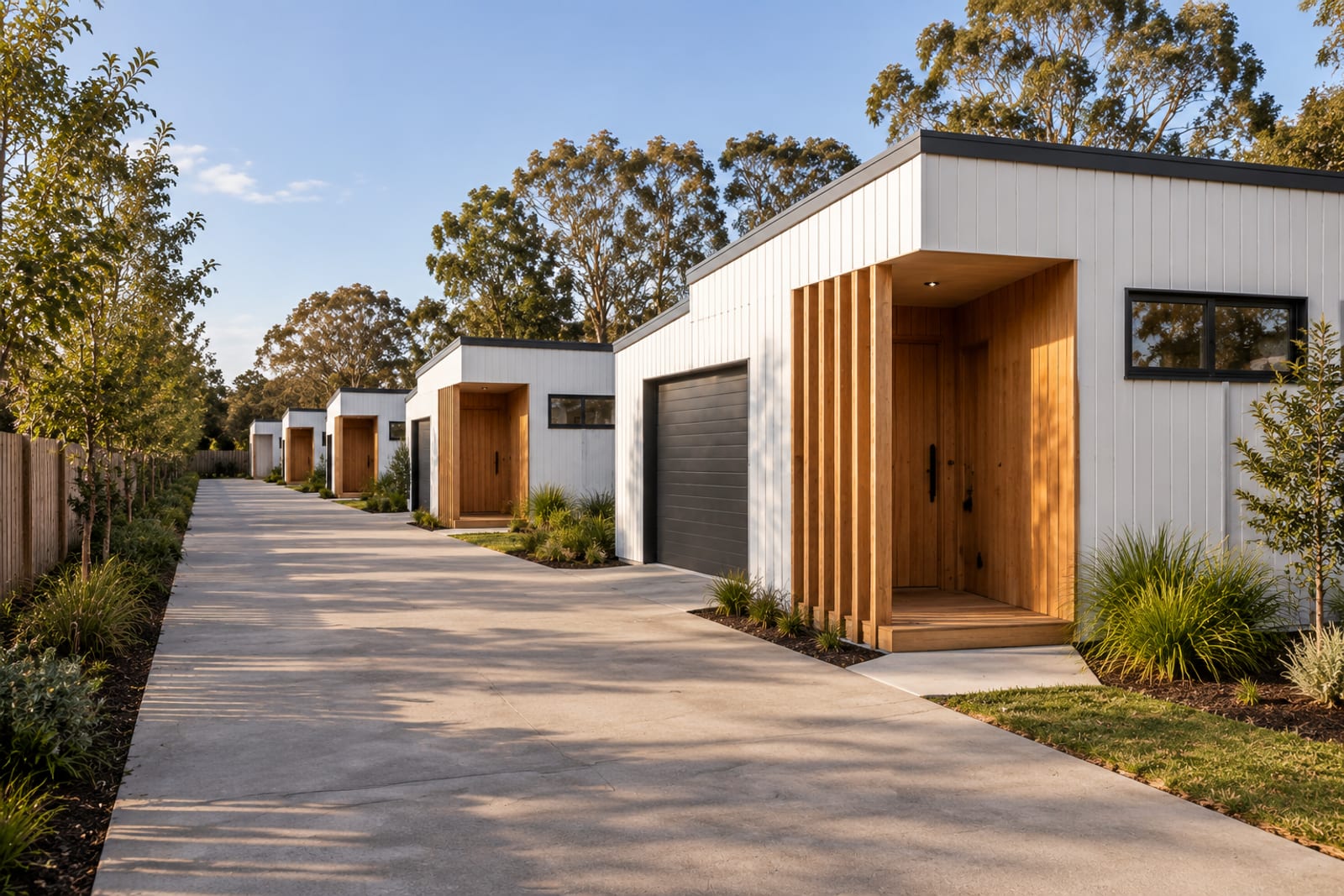

The corner portico faces the driveway, the garage kits pair up between the houses with their doors to the 5 m widenings, and every house keeps its 3 m strip and its bay. The 6 m front setback and the 4 m mid gap are the pockets where the code’s canopy trees fit.

Lot: 18 × 56.67 m = 1,020 m²
Driveway: 3.0 m, widening to 5.0 m at the garage pairs
Garages: Two pairs between the houses, doors to the driveway
Front setback: 6 m, two canopy trees
Mid gap: 4 m between house 2 and 3 — bay clearance and a tree pocket
Rear: 2.67 m: 1 m easement + 1 m buffer + planting

What the plan needs from a lot

Width behind the front house: 18 m — 3.9 garage + 11.0 house + 3.1 open space
Depth for the house zone: 13.3 m — 2 m rear + 7.5 m house + 2.8 m bay + a 1 m walk
Driveway: 3.0 m clear; the garage is end-on to it, no turning bay at the door
Turning court: About 4 m deep in front of the house when the court is shared
Crane: A lift path over or beside the front house — checked before anything is ordered
Services: Sewer and stormwater fall to the rear or the side, water and power up the driveway

The plan mirrors: driveway on the east means garage east, bay west, from the same drawings.

North is not fixed. The living room glazes east and north; on a north-facing street the mirror keeps the sliding door on the sunny side.

Floor plans

Three interiors, one shell

The external walls, the windows, the garage and the bay never move. Only the internal walls do.

Choose a plan

WallWindowHighlight window, sill 1.5 mDoorSliding doorFireplaceModule joint

External walls 200 mm, internal 90 mm. Clear internal dimensions unless marked as outer frame. Room areas are computed from the drawing; the outer frame is 91.18 m² for the dwelling and 24.96 m² for the garage.
W01, W02 and W03 face the shared court and are highlight windows with sills at 1.5 m.

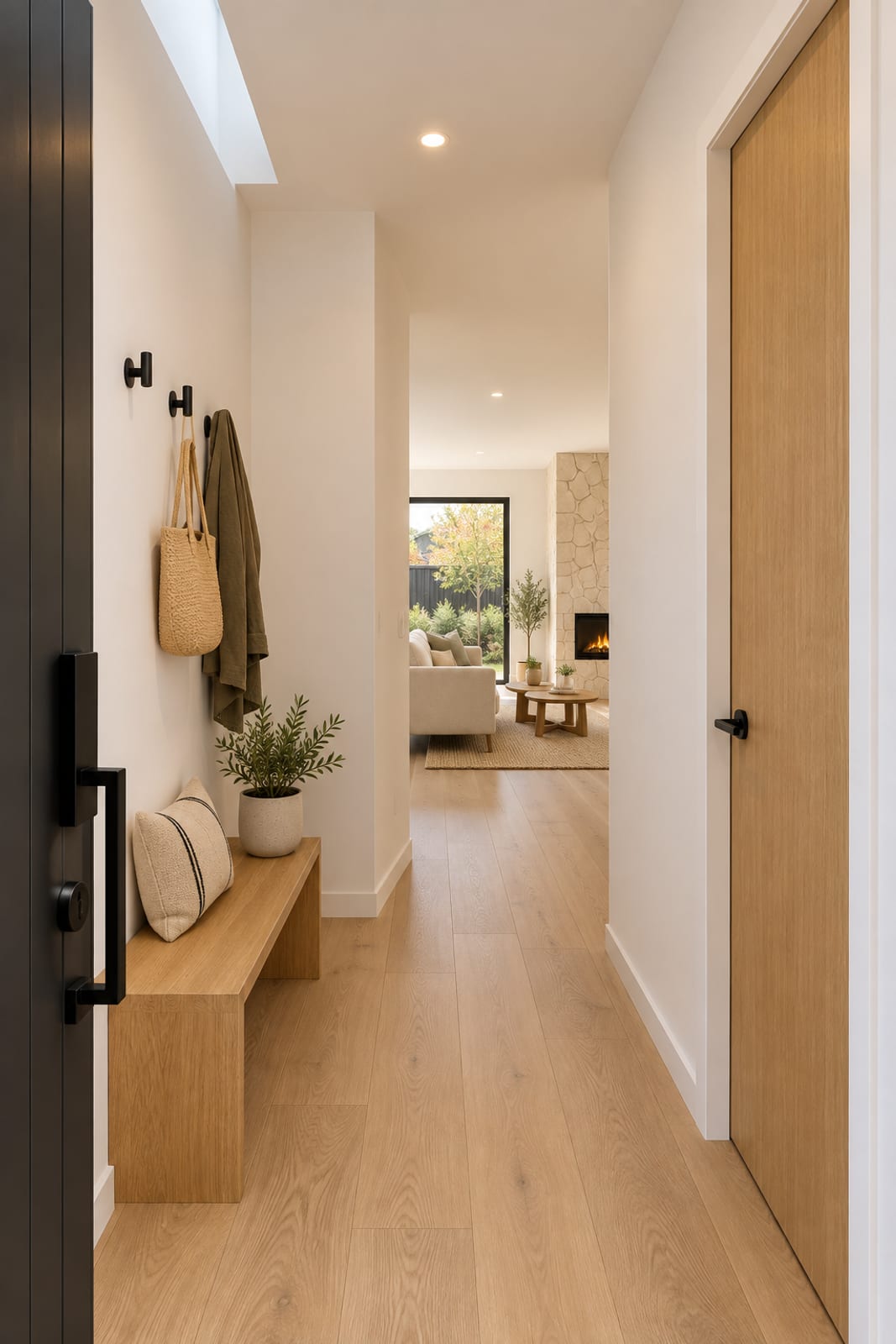

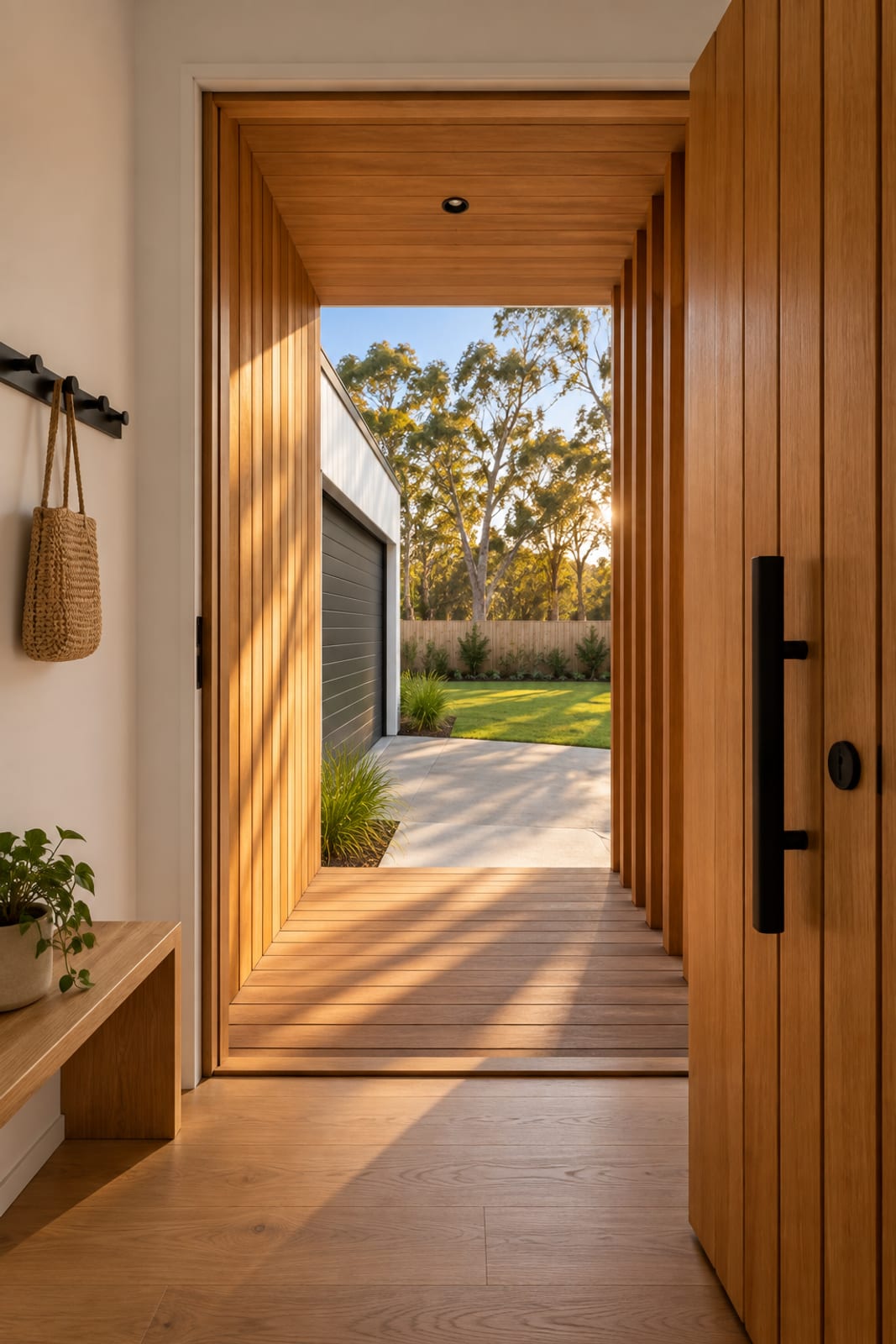

Plan A — the view from the entry passage

The great-room plan

Plan A · Hearth

38 m² of kitchen, dining and living in one volume, the fireplace on axis with the front door, a desk under the north window, and the master suite with its dressing room and ensuite in the bay.

Owner-occupiers, downsizers, premium long-term tenants

—Great room 7.3 × 3.6 m plus an 11.7 m² kitchen zone with a 2.4 m island
—Master 3.2 × 3.4 m, east window to a screened courtyard, dressing room and ensuite in the bay
—Bedroom 2 3.2 × 3.6 m with a 2 m built-in robe, beside the entry

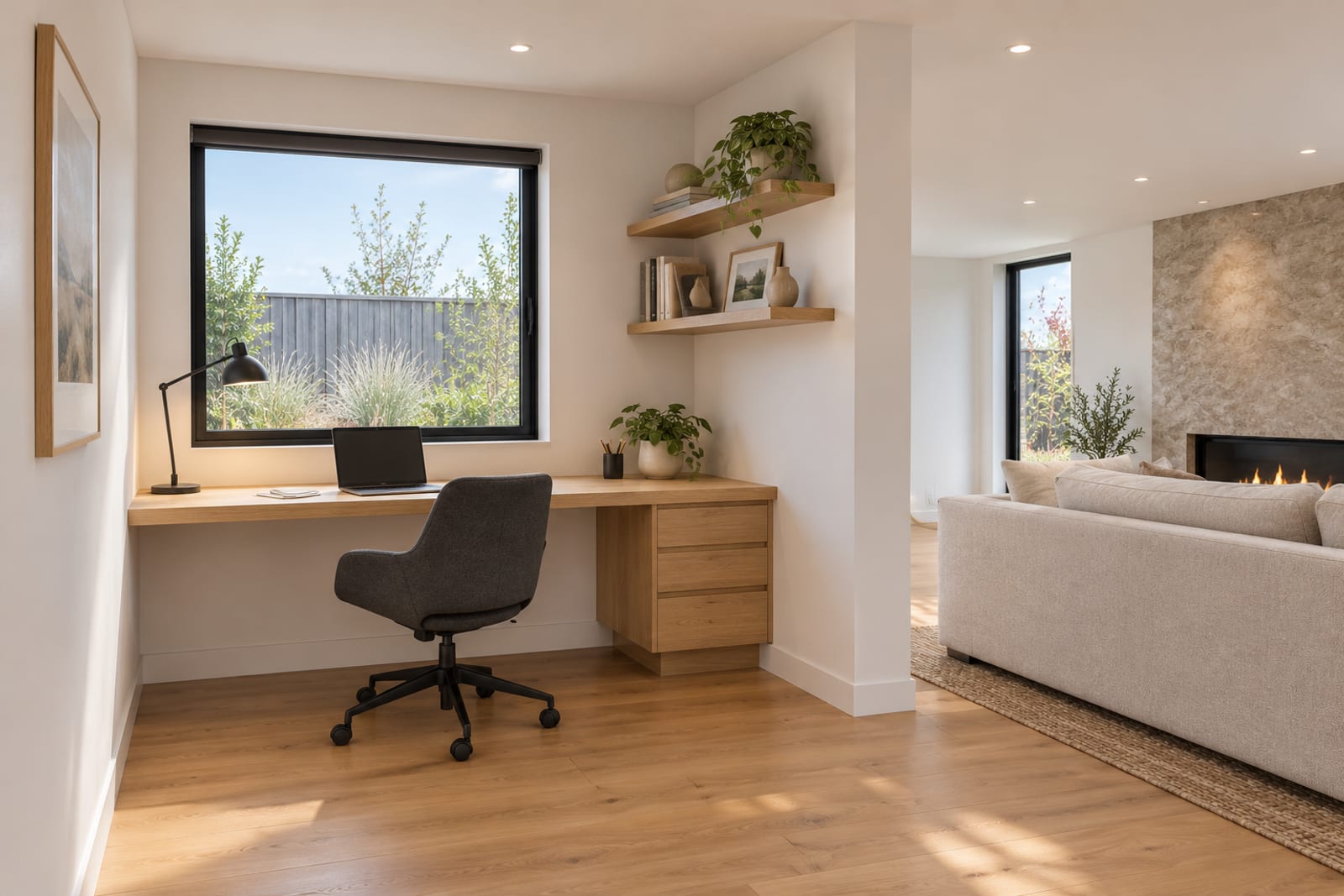

—Study desk 1.8 m long under its own window

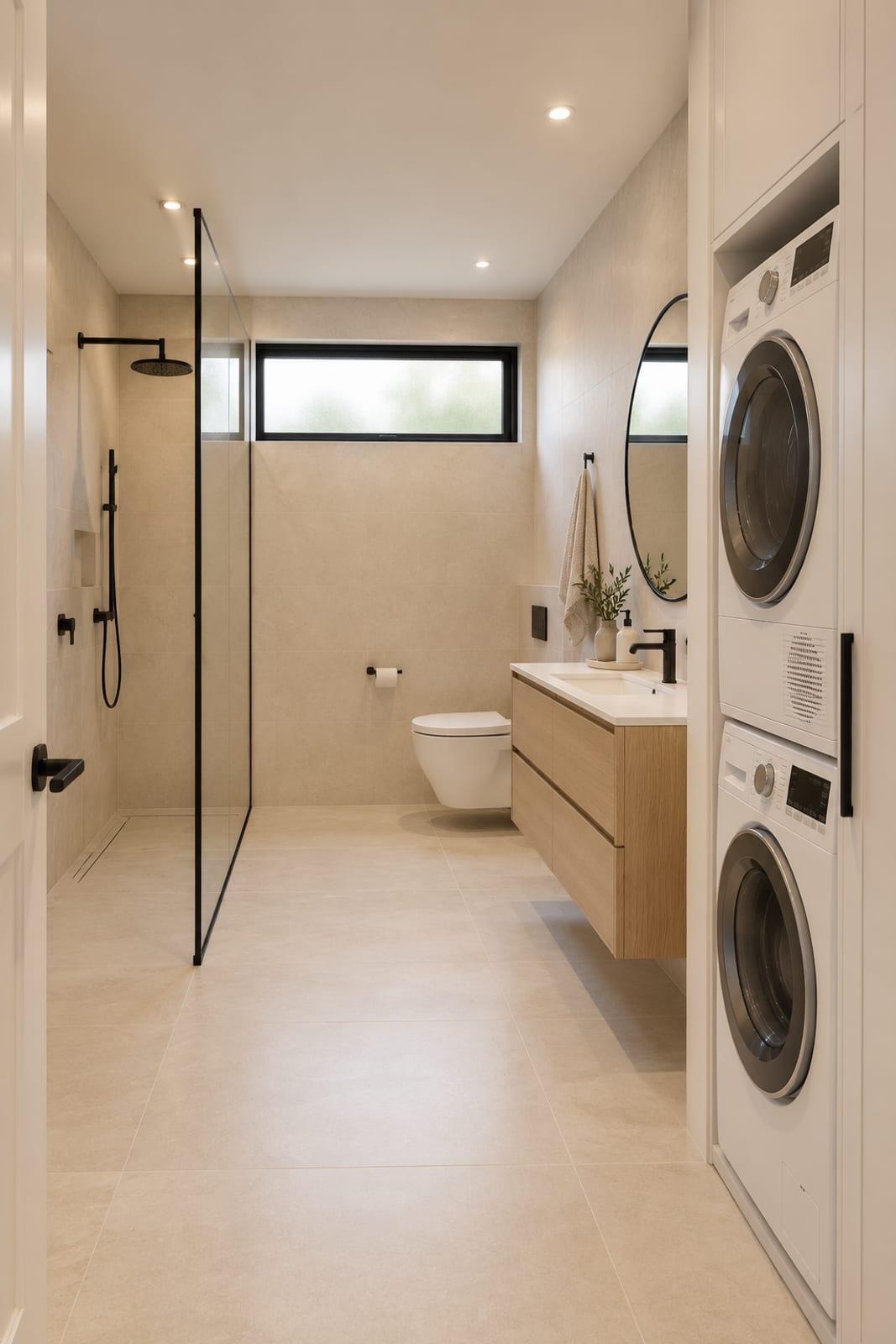

—Bathroom off the hall with the stacked washer and dryer

Room schedule

Entry	5.1 m²
Bathroom	5.1 m²
Bedroom 2	11.5 m²
Kitchen	11.7 m²
Living · dining	26.3 m²
Master	10.9 m²
Dressing	3.1 m²
Ensuite	3.6 m²
Great room (kitchen + living + dining)	38.0 m²
Internal floor area, rooms only	77.3 m²
Dwelling outer frame	91.2 m²
Garage clear	21.0 m²

Outside

The same house, all the way around

Twelve concept views follow the selected cladding and roof. The garage position shown is the keep-the-front development.

View000°1/12

Drag left or right, or use the arrows

Twelve AI concept views from the same façade render — massing, materials and openings, not survey drawings.

360°

Stand in the court. Step inside.

Drag to look around. Choose the forecourt, the private garden or one of the three great-room layouts.

ForecourtPrivate gardenGreat room · AGreat room · BGreat room · C

Forecourt

Drag to look around

AI concept panoramas of the CC design. The outside views follow the selected roof and cladding; interiors share the same shell. These are design illustrations, not site photographs.

Exterior

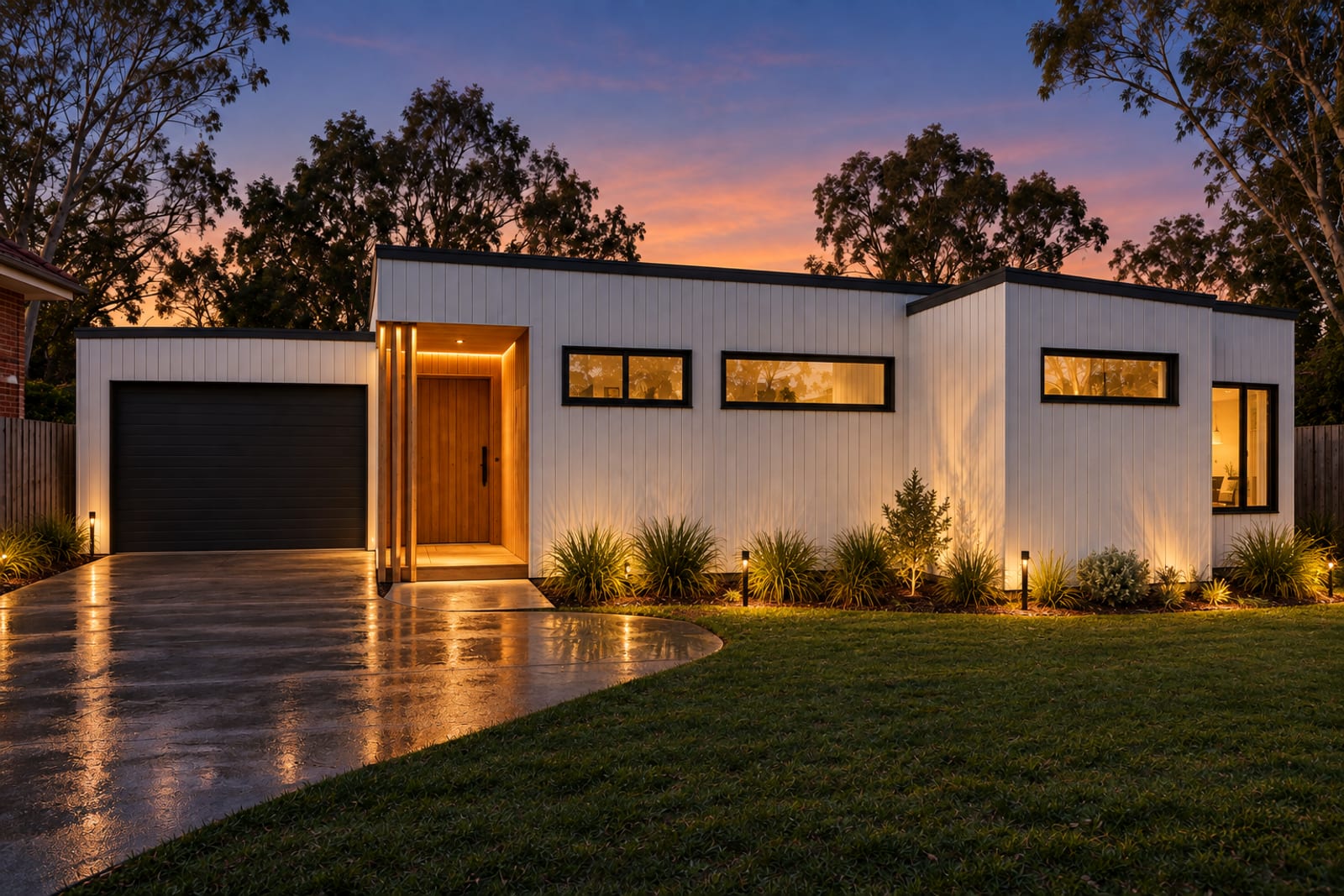

The front does not change

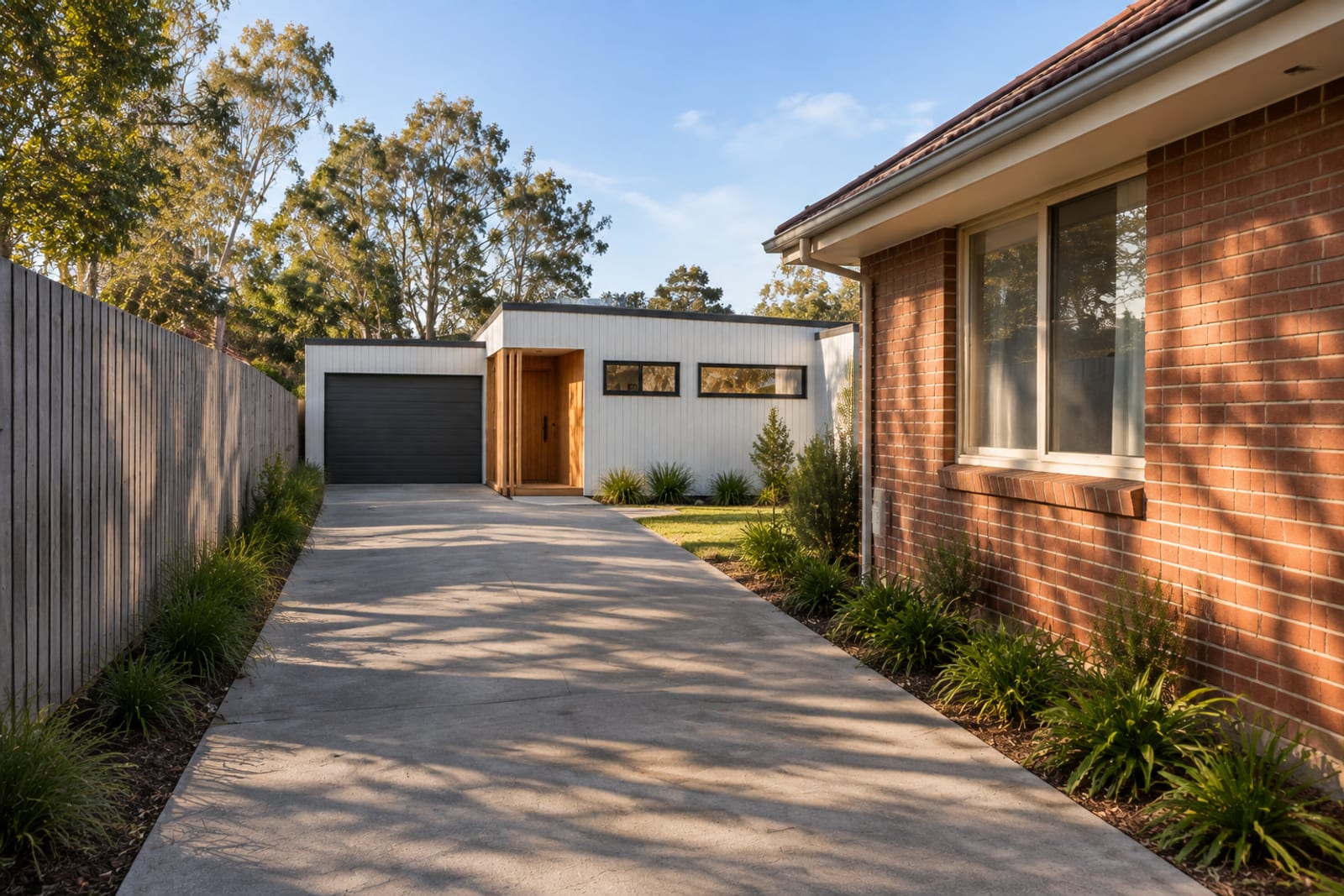

Garage door 1.1 m back, timber corner portico, two highlight windows under the eave, the bay projecting 2.8 m. The classic Melbourne unit — garage, porch, bay — in white board, timber and black steel.

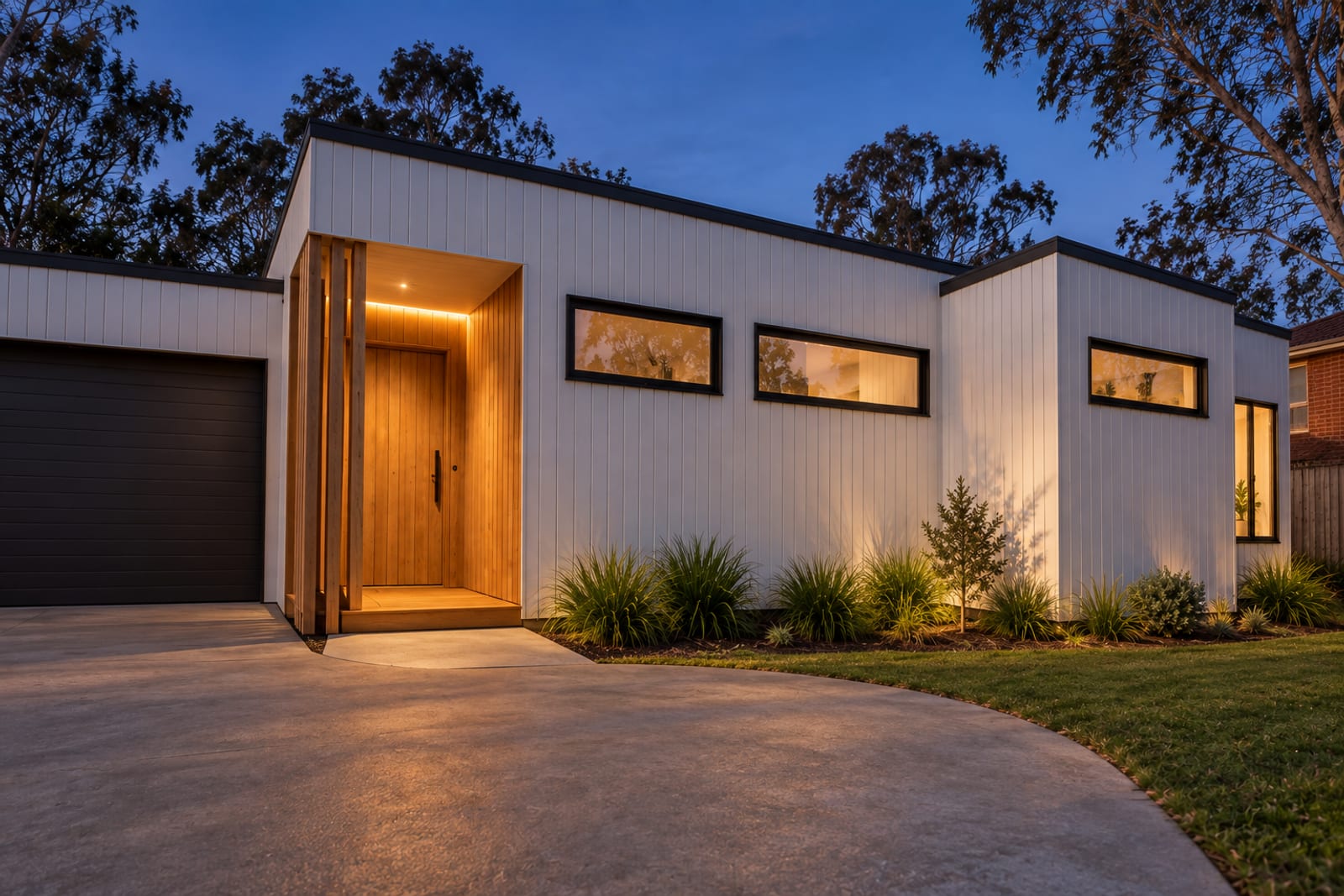

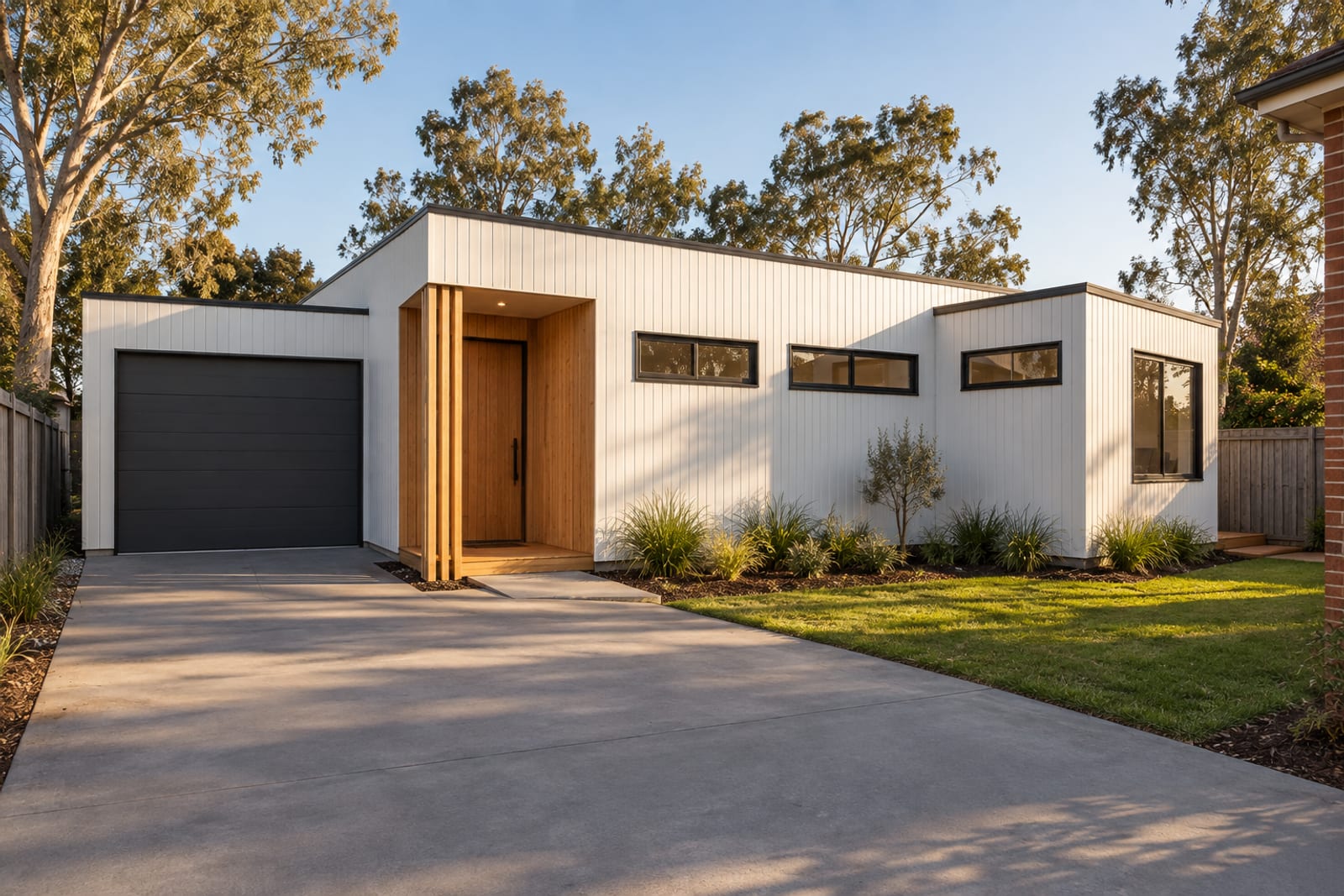

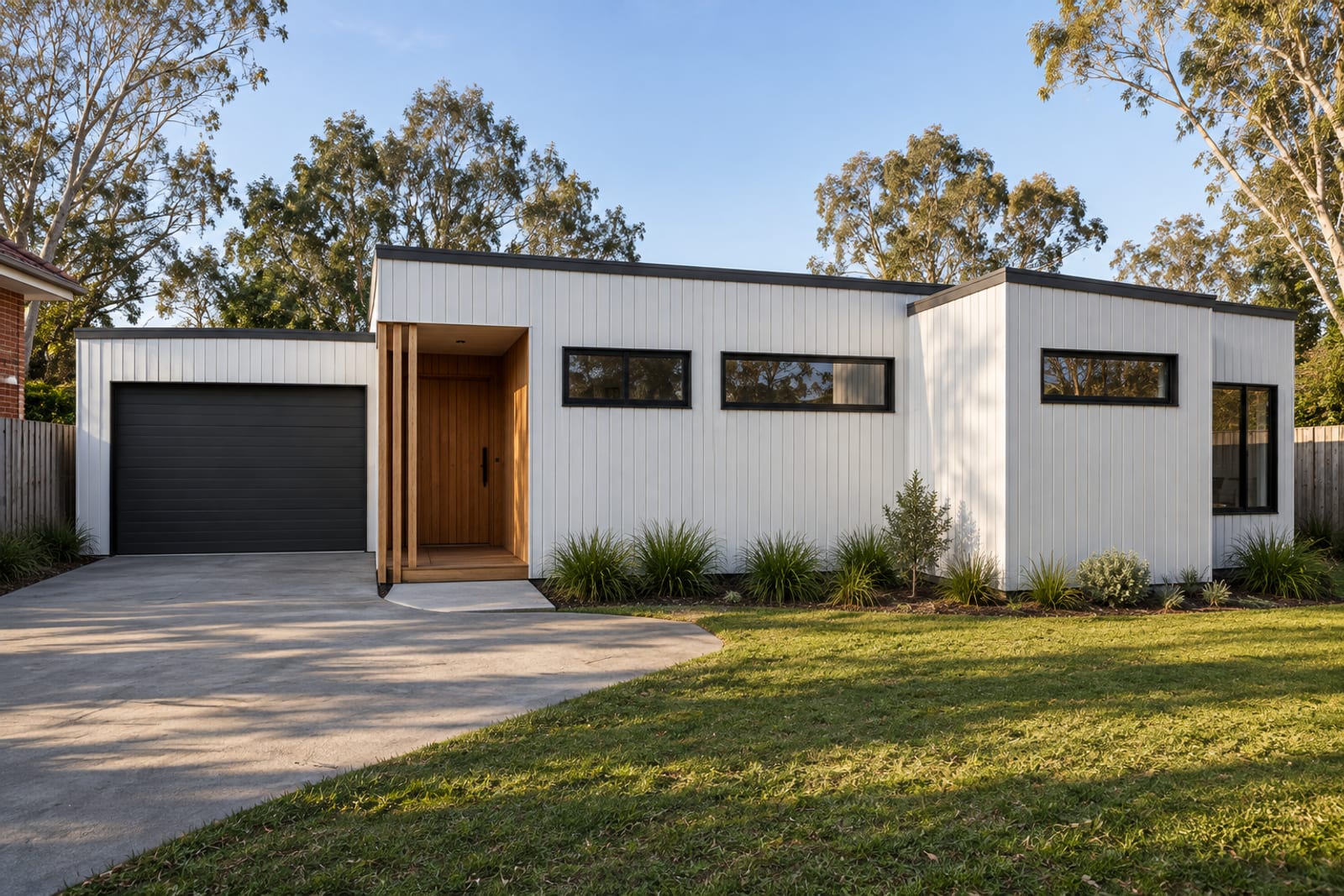

House CC front — Front elevation from the court — design render

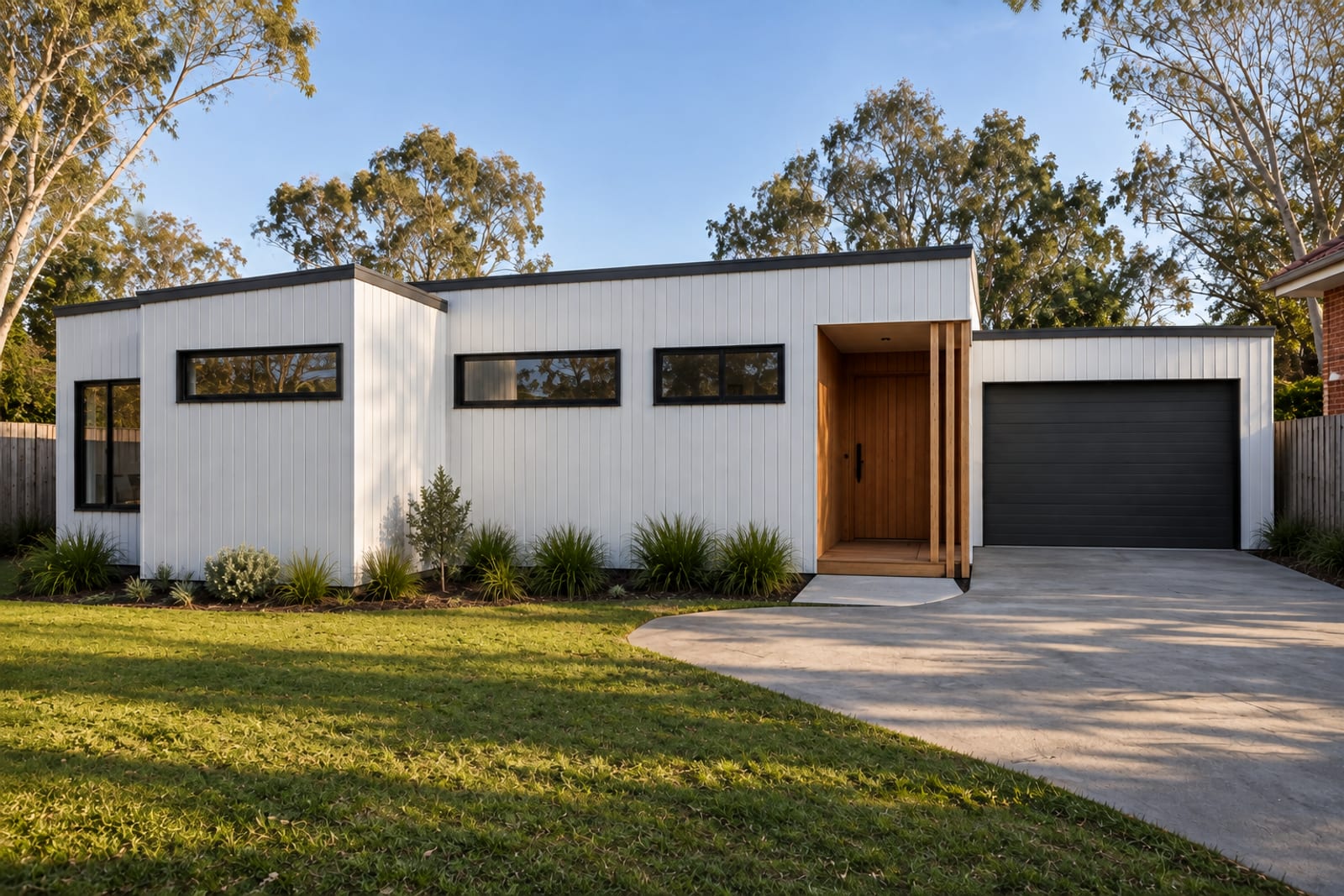

The mirrored plan — garage east, bay west

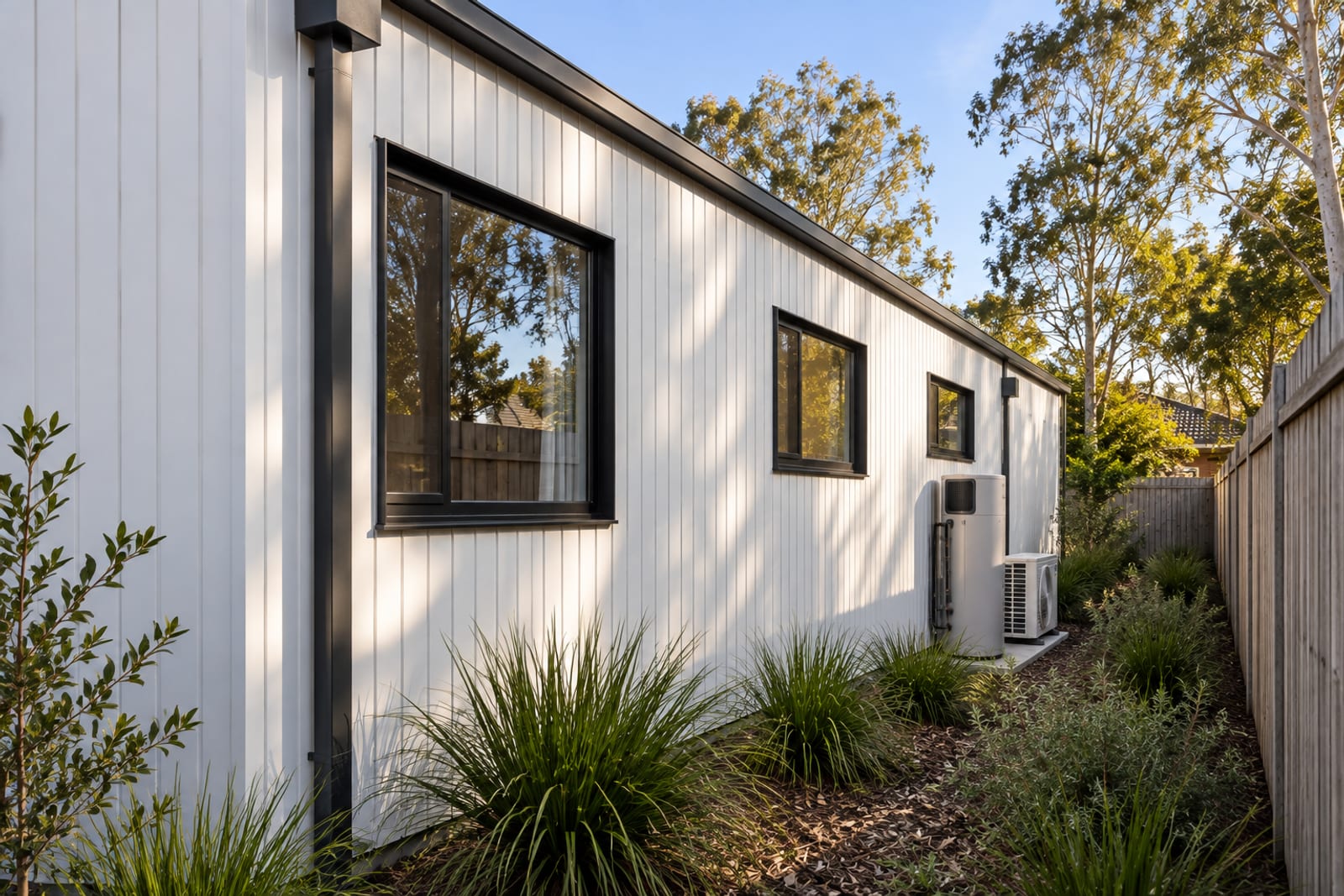

The rear — 2 m planted strip, services corner

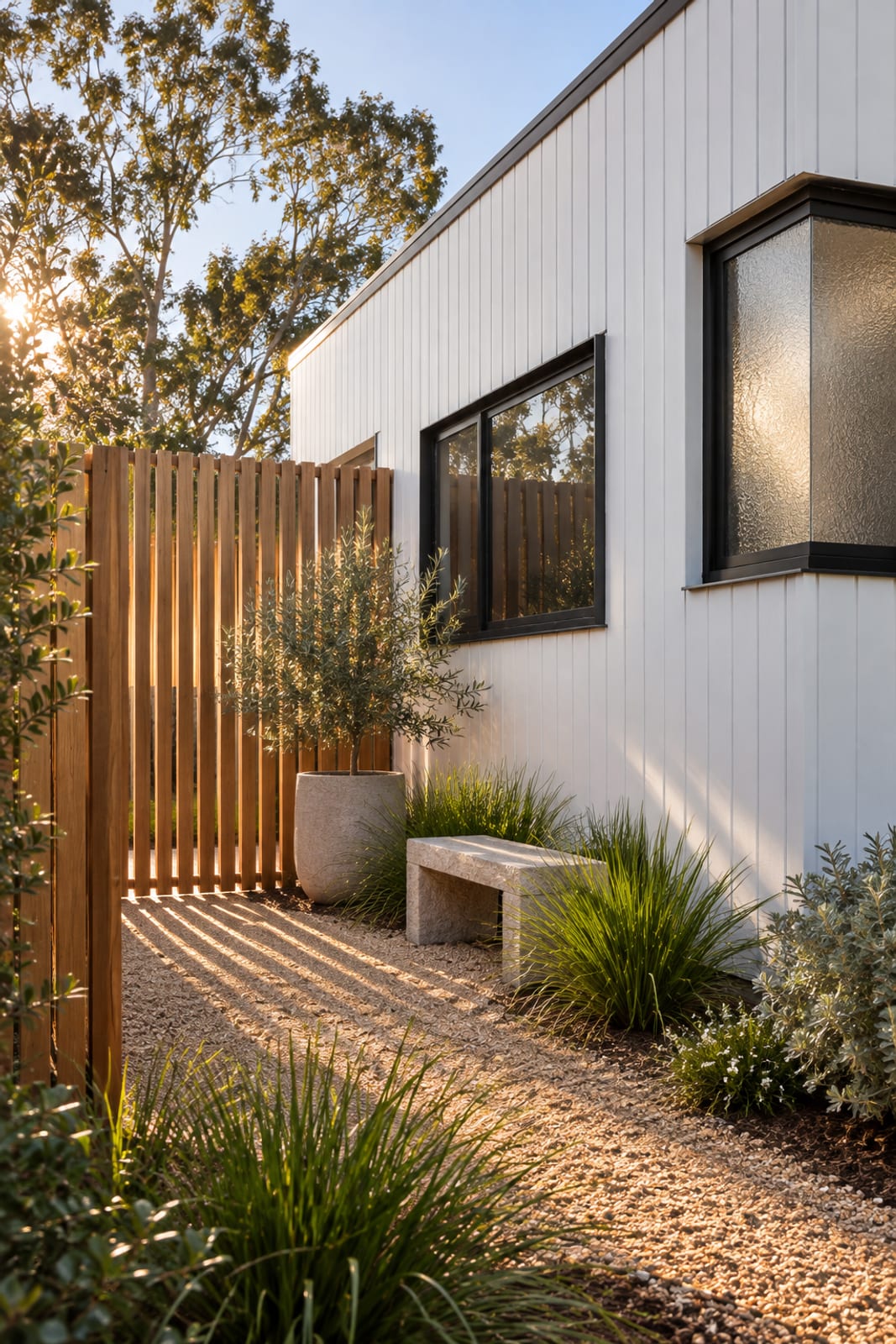

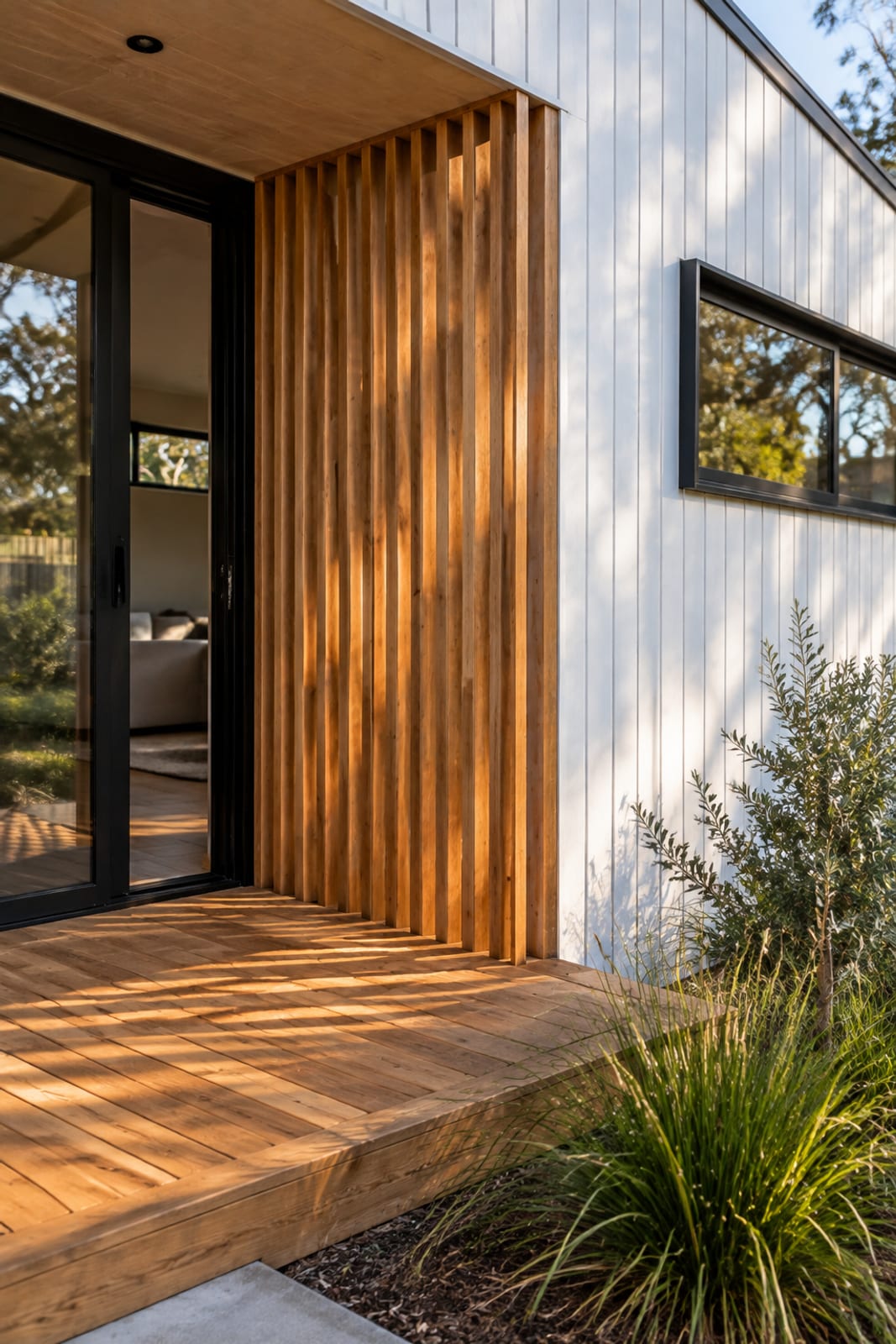

The master courtyard behind its batten screen

Garage, recessed

3.9 × 6.4 m kit on the west boundary, front wall 1.1 m behind the façade, matte charcoal sectional door 2.75 × 2.1 m.

Corner portico

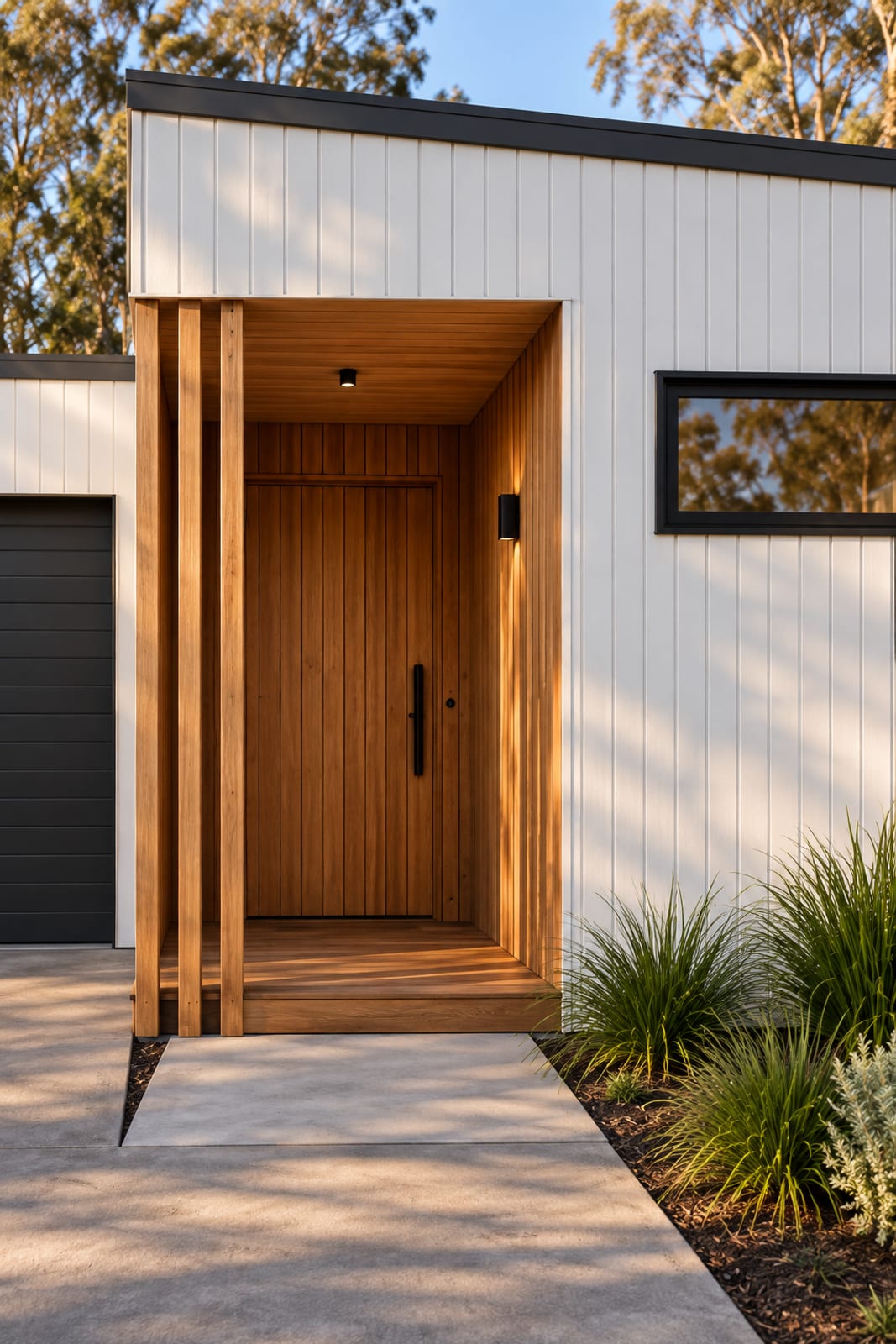

1.7 × 1.3 m, open south and west, timber battens on walls and soffit, a 150 mm corner post, solid timber door. 2.2 m² covered.

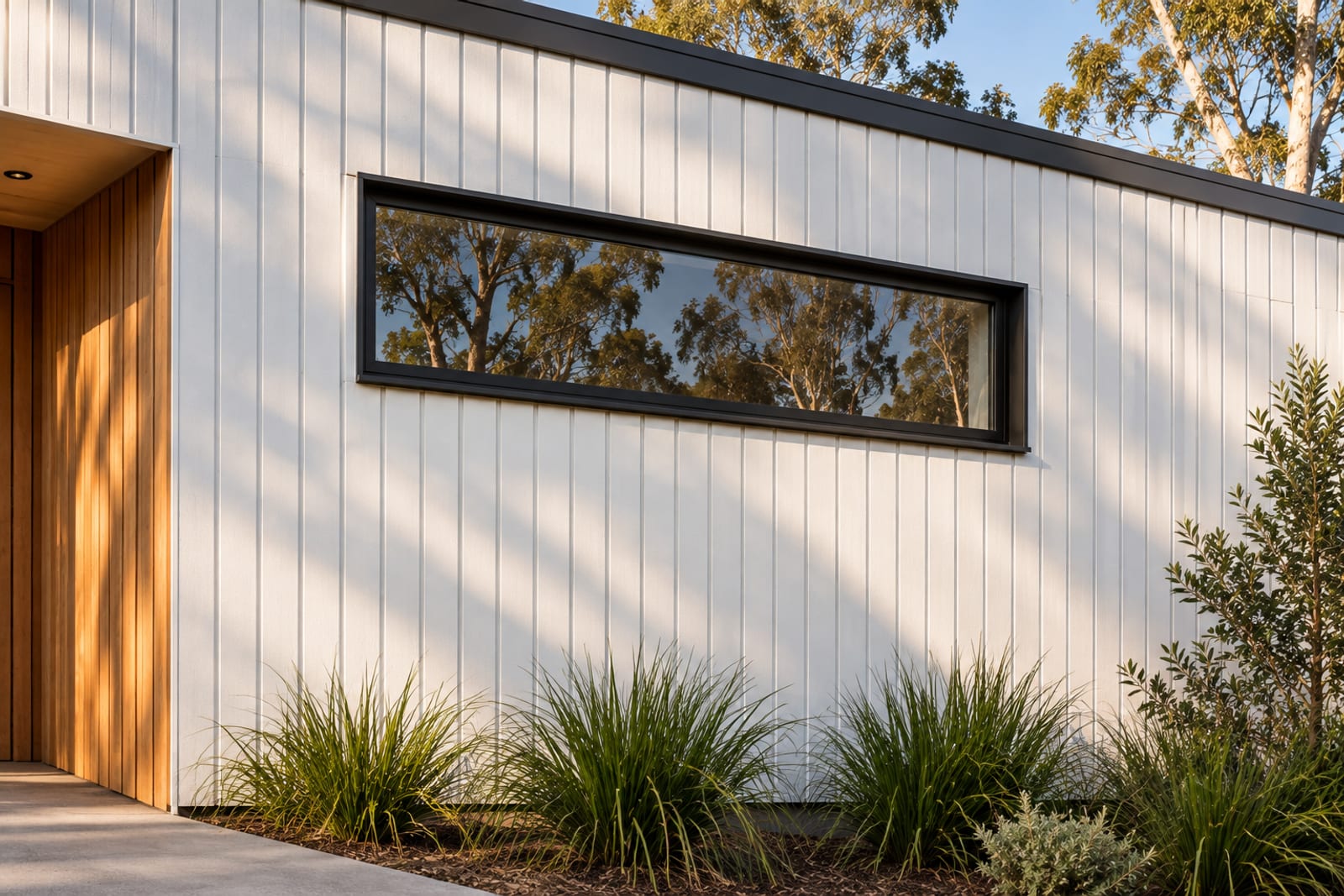

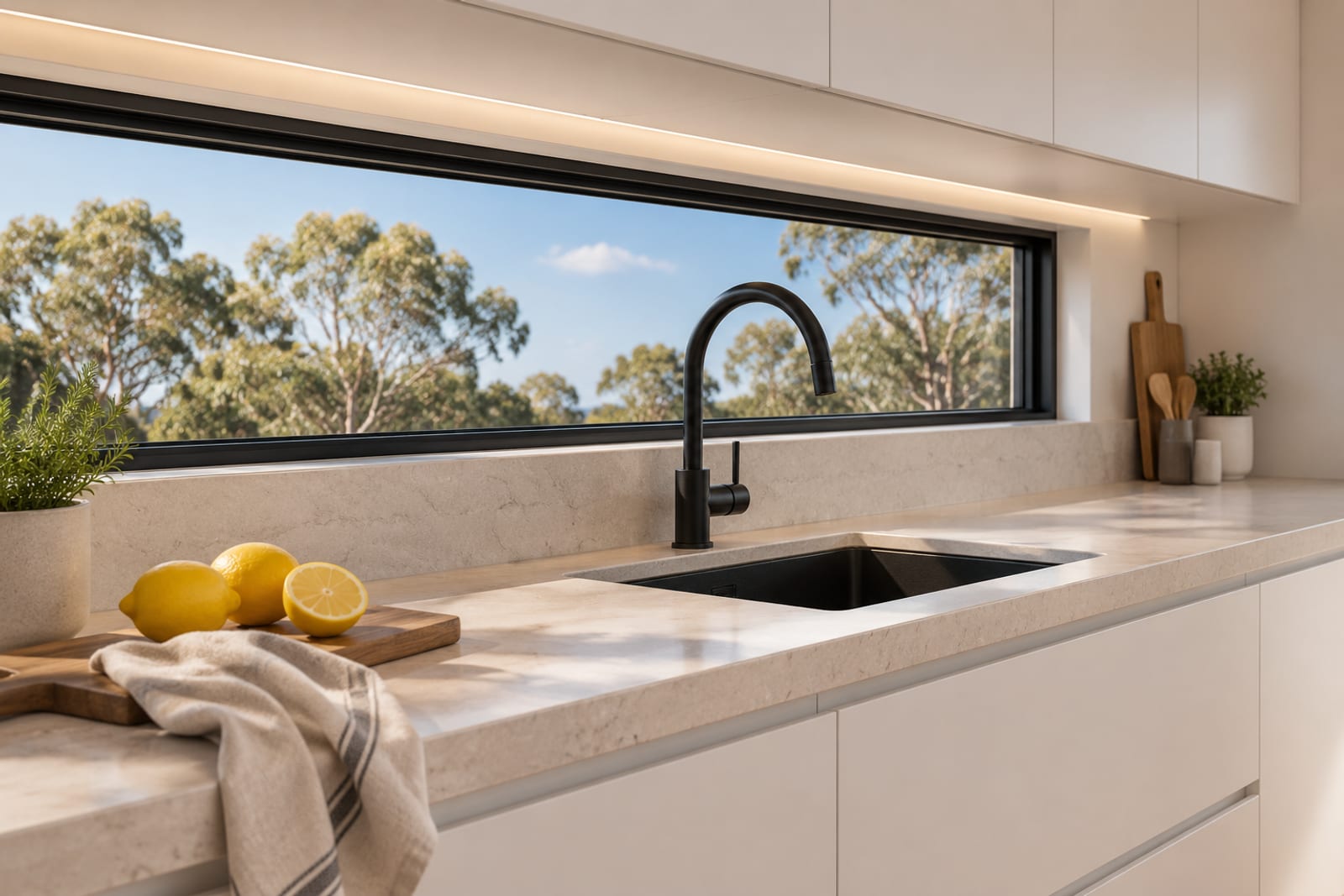

Highlight windows

Three horizontal windows, sills 1.5 m, heads 2.4 m — bathroom, kitchen, ensuite. Light in, court kept private.

The bay

The bay keeps its fixed footprint and openings; its smaller hip roof joins the main roof.

Hipped roof on timber trusses

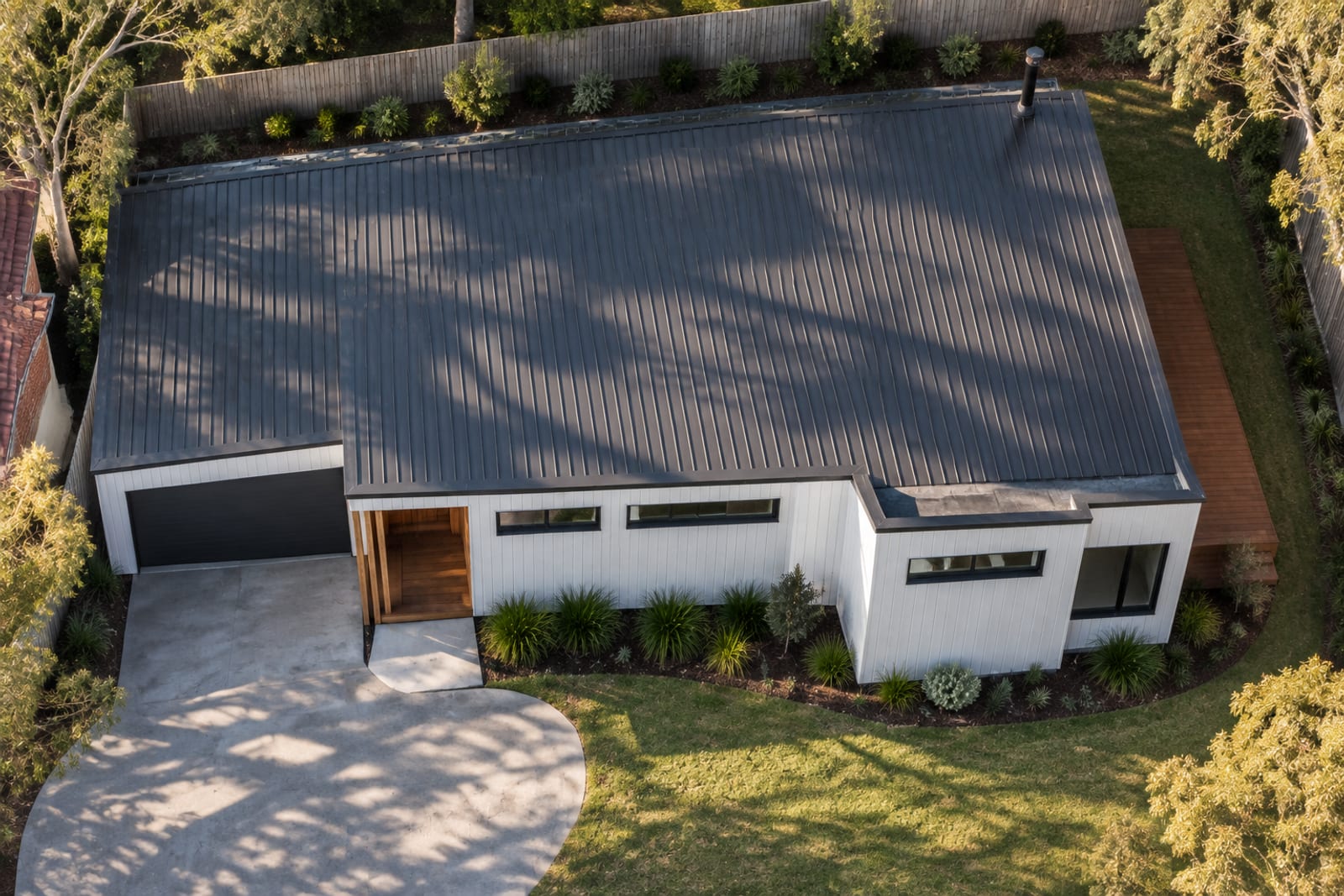

Concept roof option: a 22.5° hipped Colorbond roof in dark Monument, timber trusses, 450 mm eaves and quad gutters. The garage has its own lower hip; the covered link stays flat. Structure and drainage require project design.

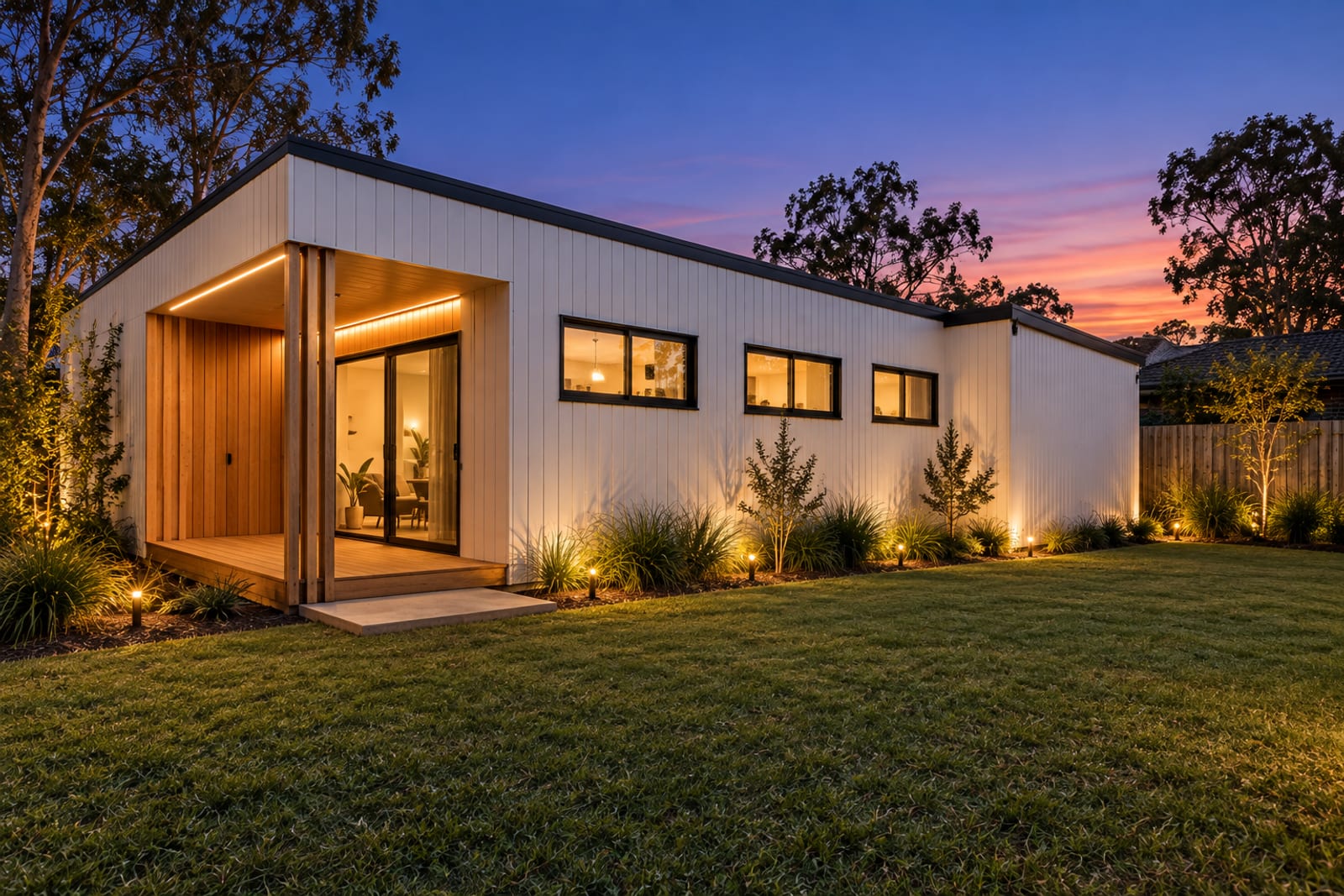

The east side

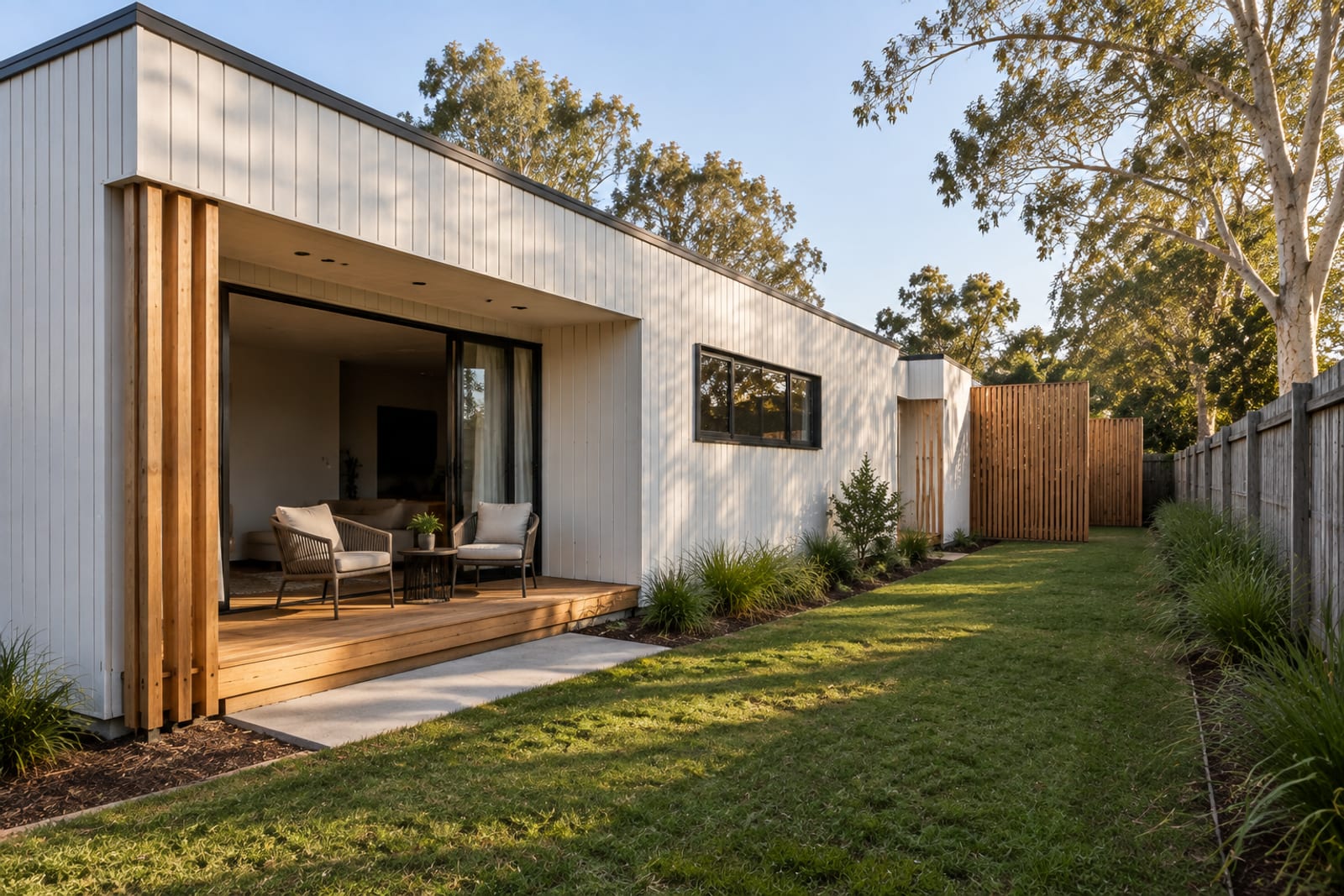

The 2.8 m sliding door and a timber deck onto the 3.1 m private strip; the master window onto a screened courtyard.

South elevation — the court side

External materials

Cladding: James Hardie Linea™ 180 mm horizontal weatherboard, painted white, non-combustible
Roof: Concept roof option: a 22.5° hipped Colorbond roof in dark Monument, timber trusses, 450 mm eaves and quad gutters. The garage has its own lower hip; the covered link stays flat. Structure and drainage require project design.

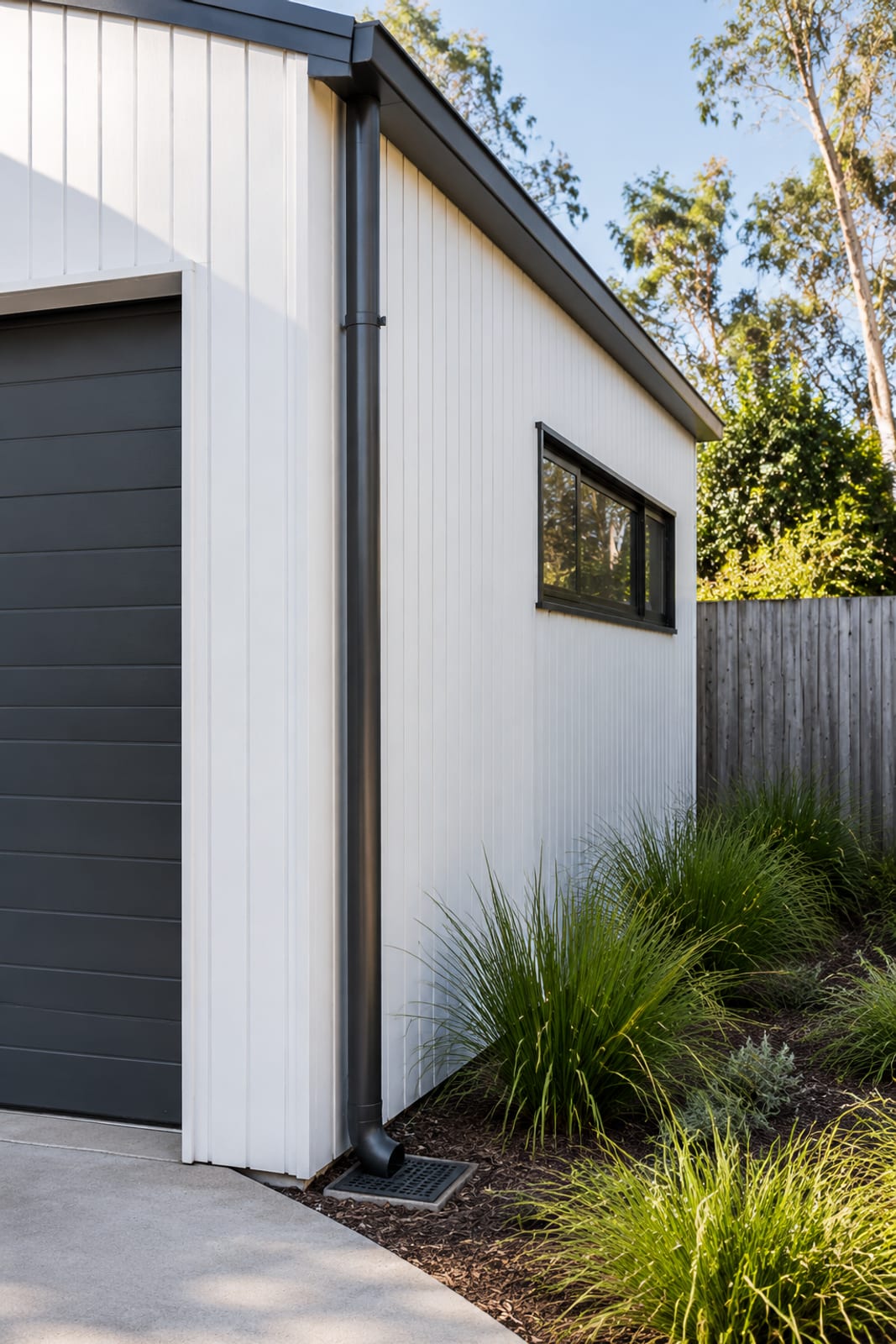

Fascia and gutter: Quad gutters around the eaves
Windows: Black aluminium, double glazed, AS 2047; obscure glass to bathroom windows

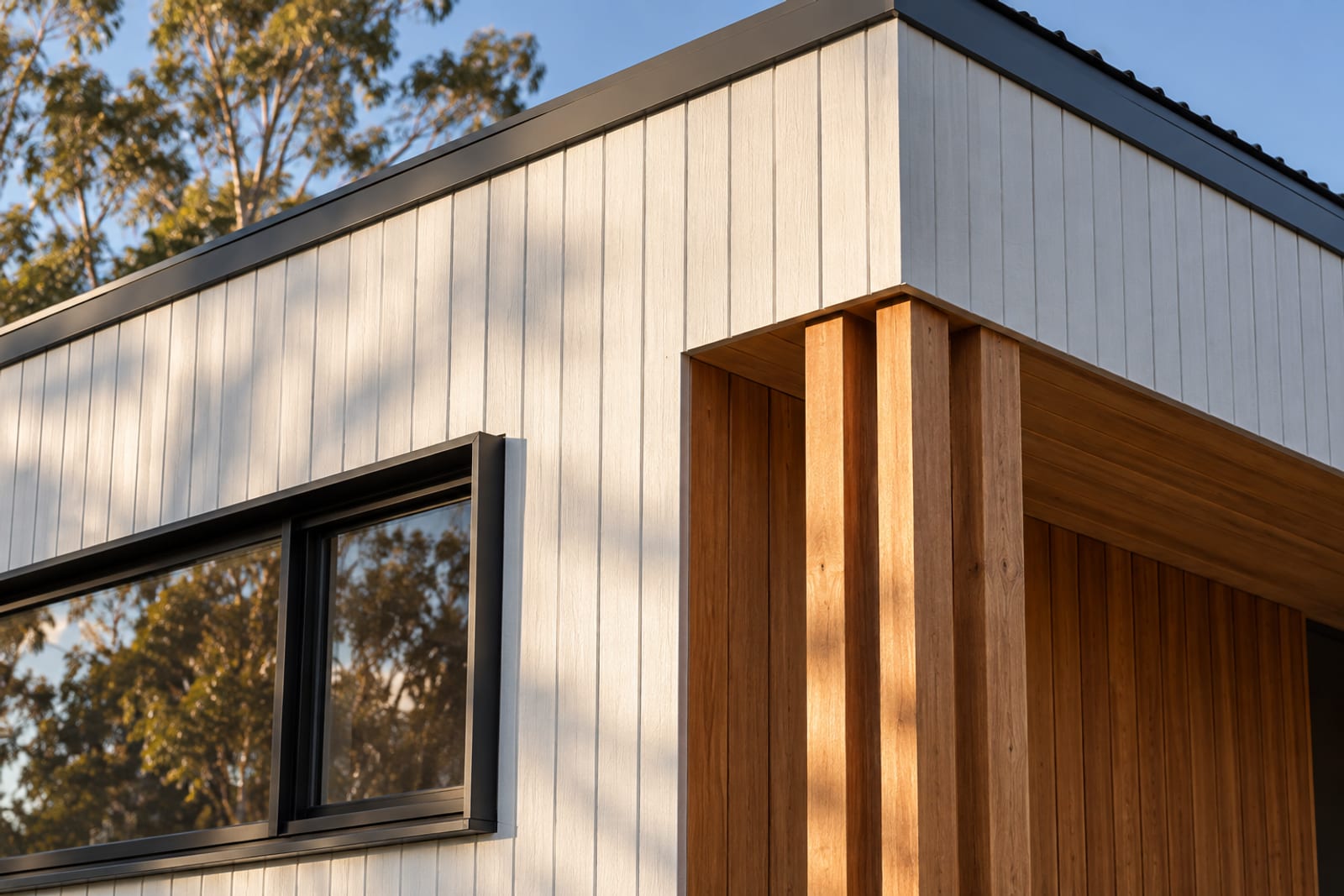

Portico: Vertical spotted-gum boards on walls and soffit, slim spotted-gum posts, timber entry door with a glass sidelight
Garage door: Sectional panel door, matte charcoal, 2750 × 2100
Deck: Timber deck 2.8 × 1.8 m off the living slider, timber batten screen to the master courtyard

Roof plan

Details

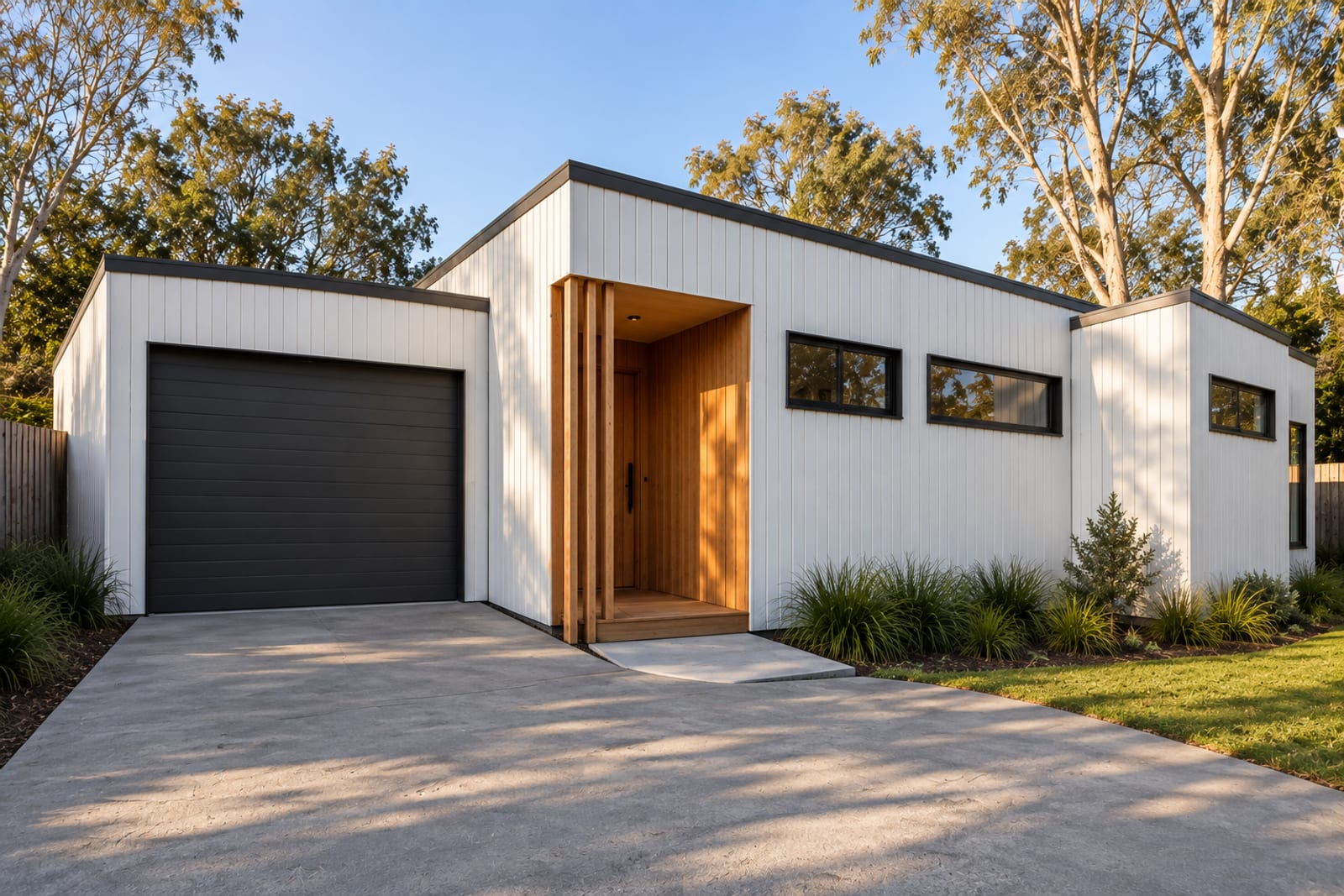

Separate hipped roofs with a low covered link

Interiors

What the 92 square metres are spent on

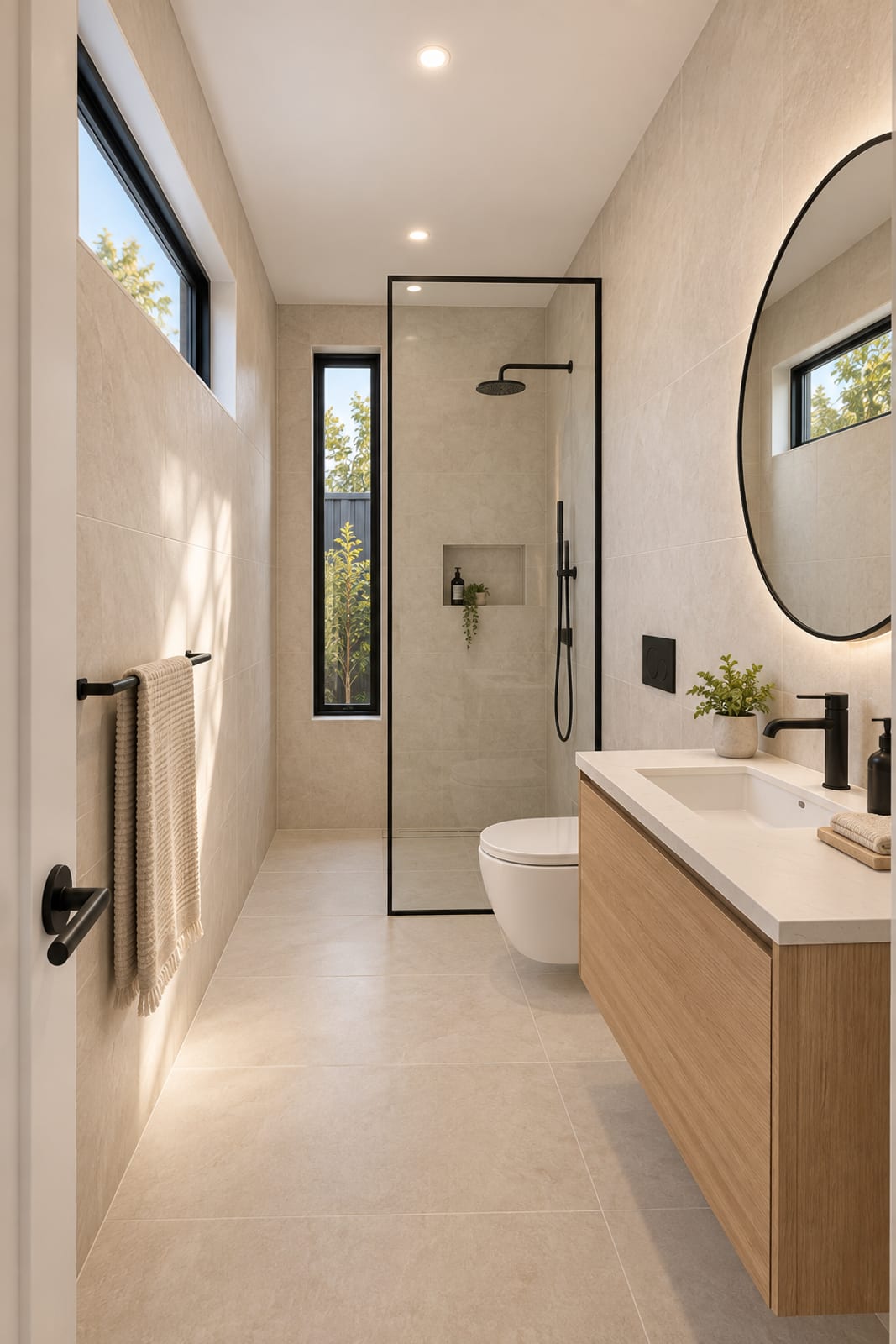

Matte white walls under 2.7 m ceilings, engineered oak floors, white joinery with stone-look tops, black tapware and frames, the fireplace in a stone panel. Design intent, not photographs of a built house.

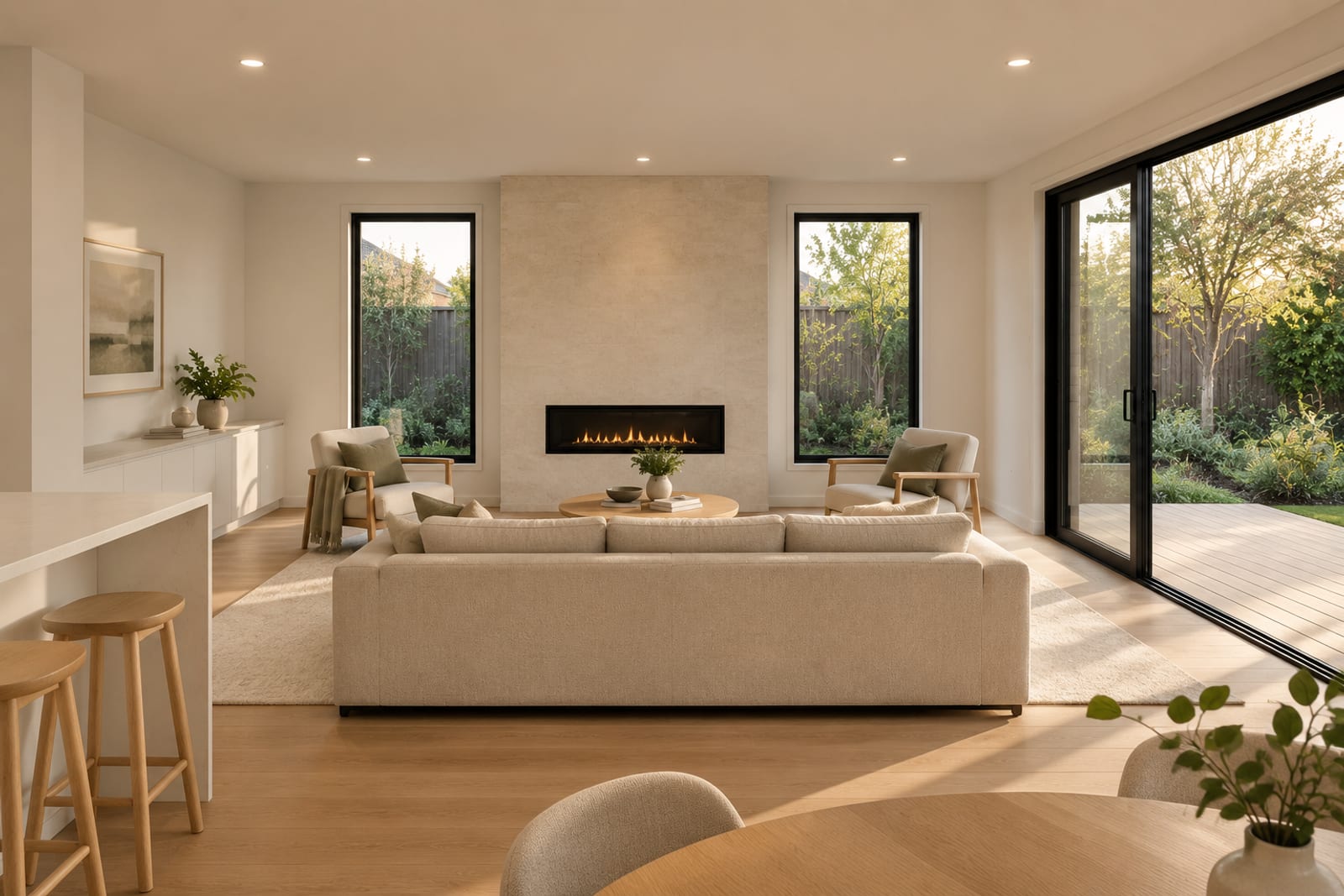

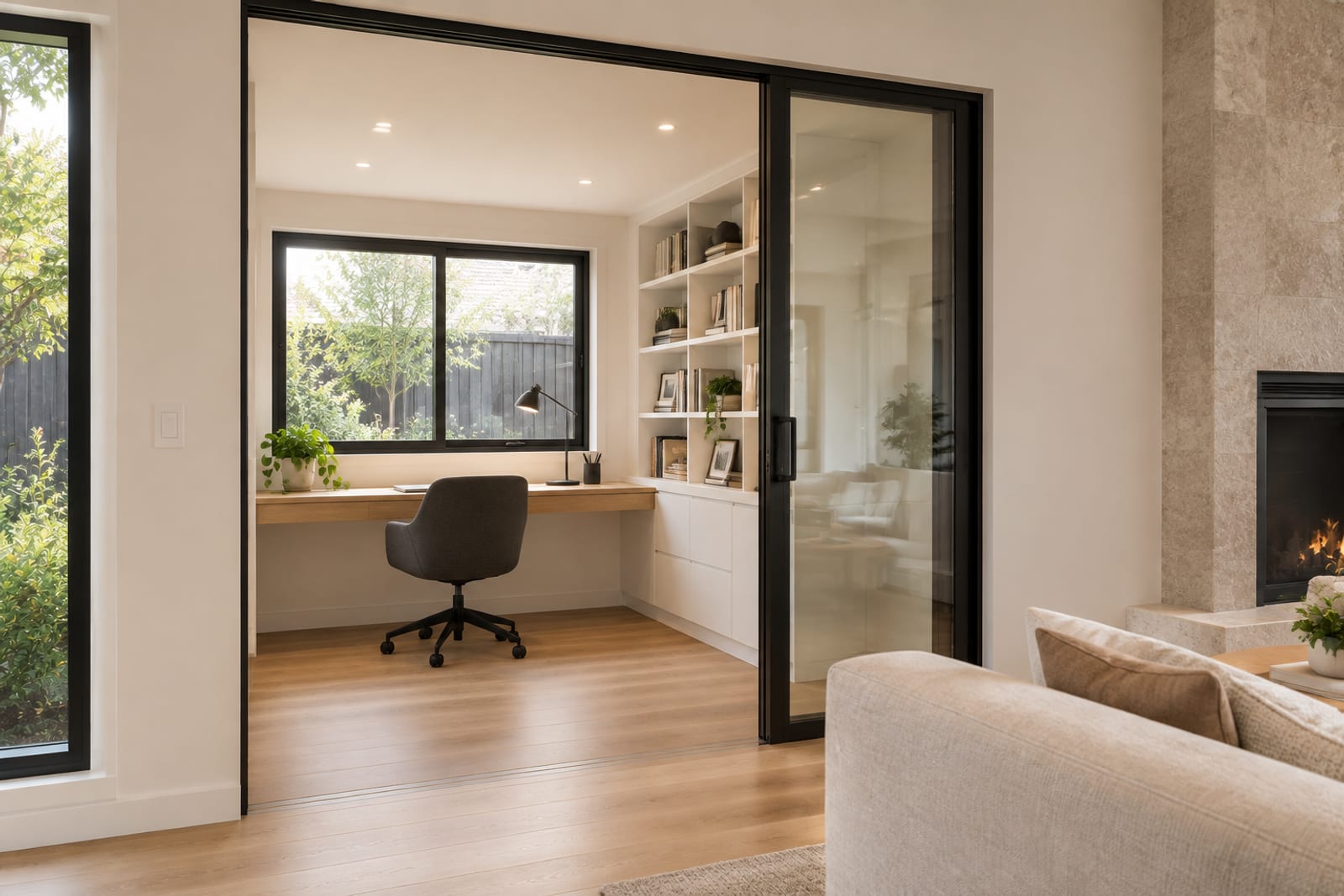

Living room and the glazed study — Plan B

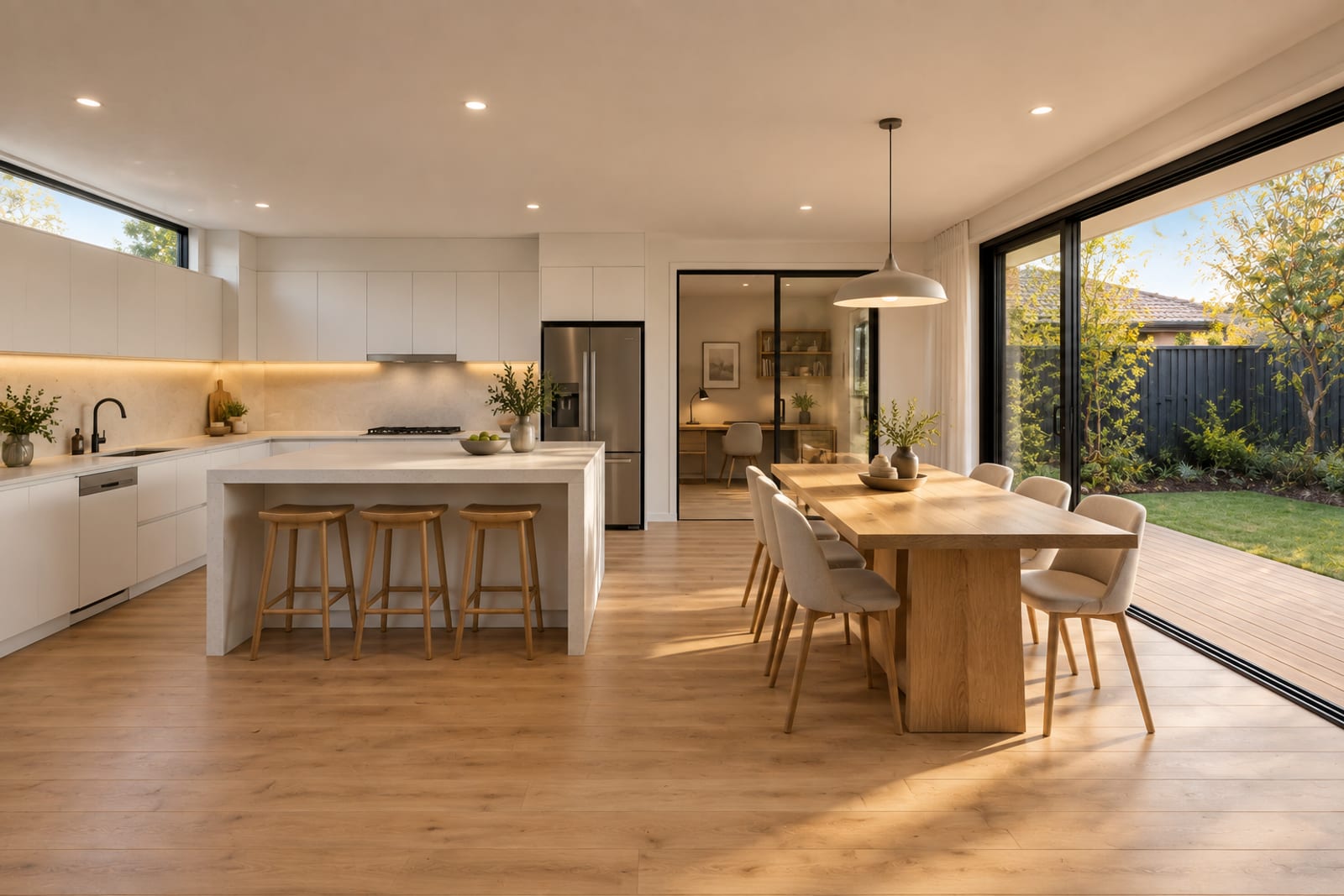

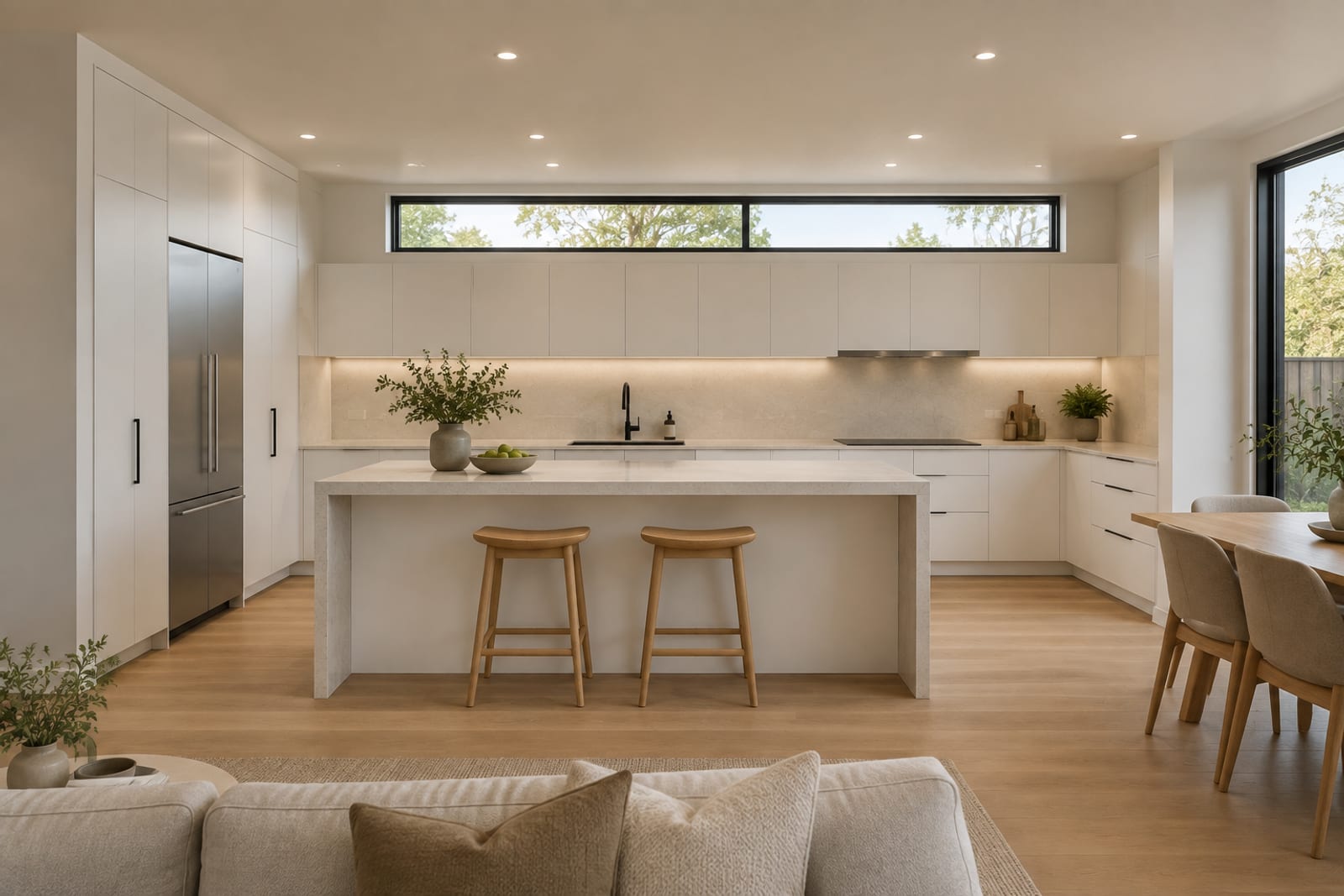

Kitchen under the highlight window — Plans A and B

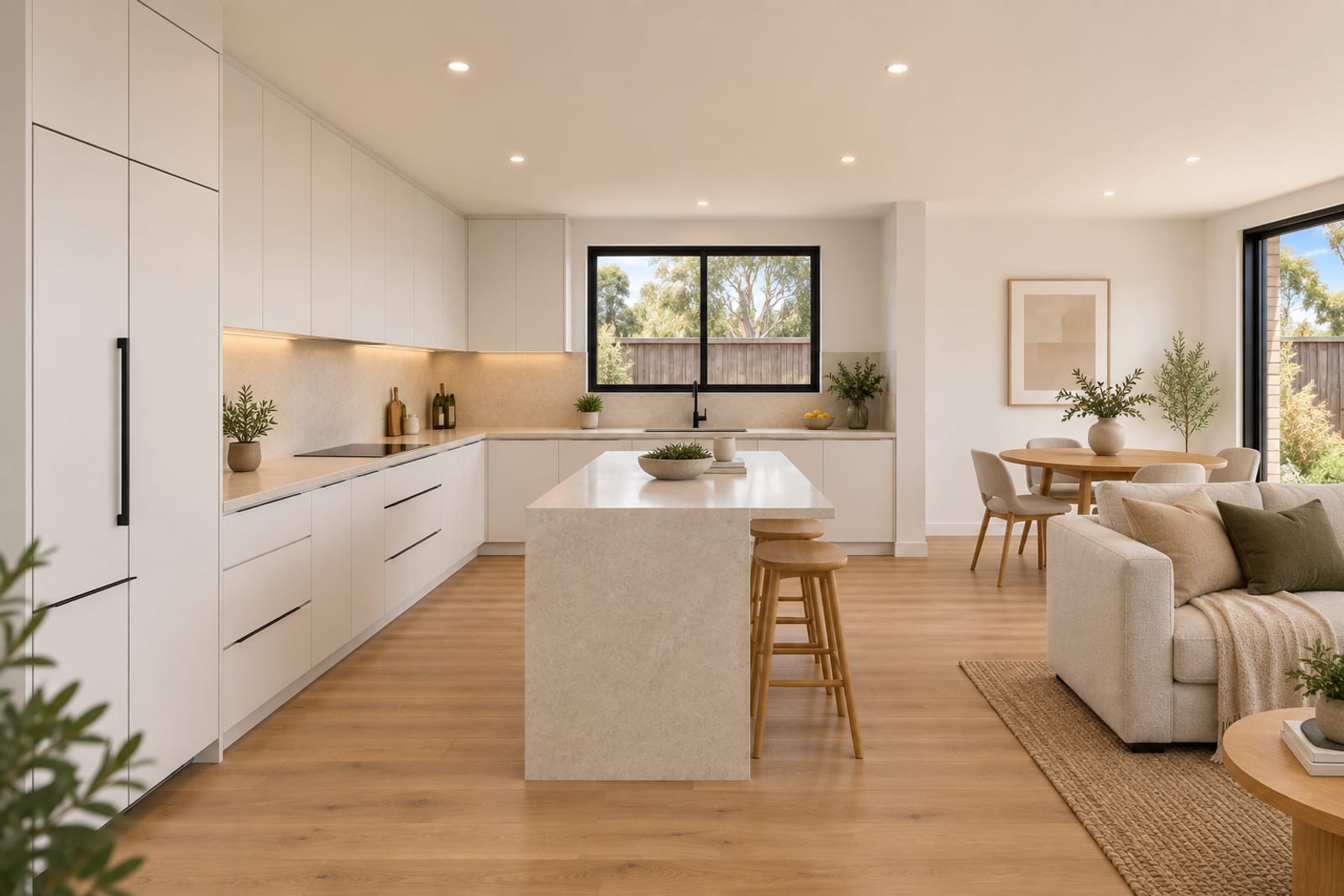

L-kitchen with the north window — Plan C

Dining nook under the highlight — Plan C

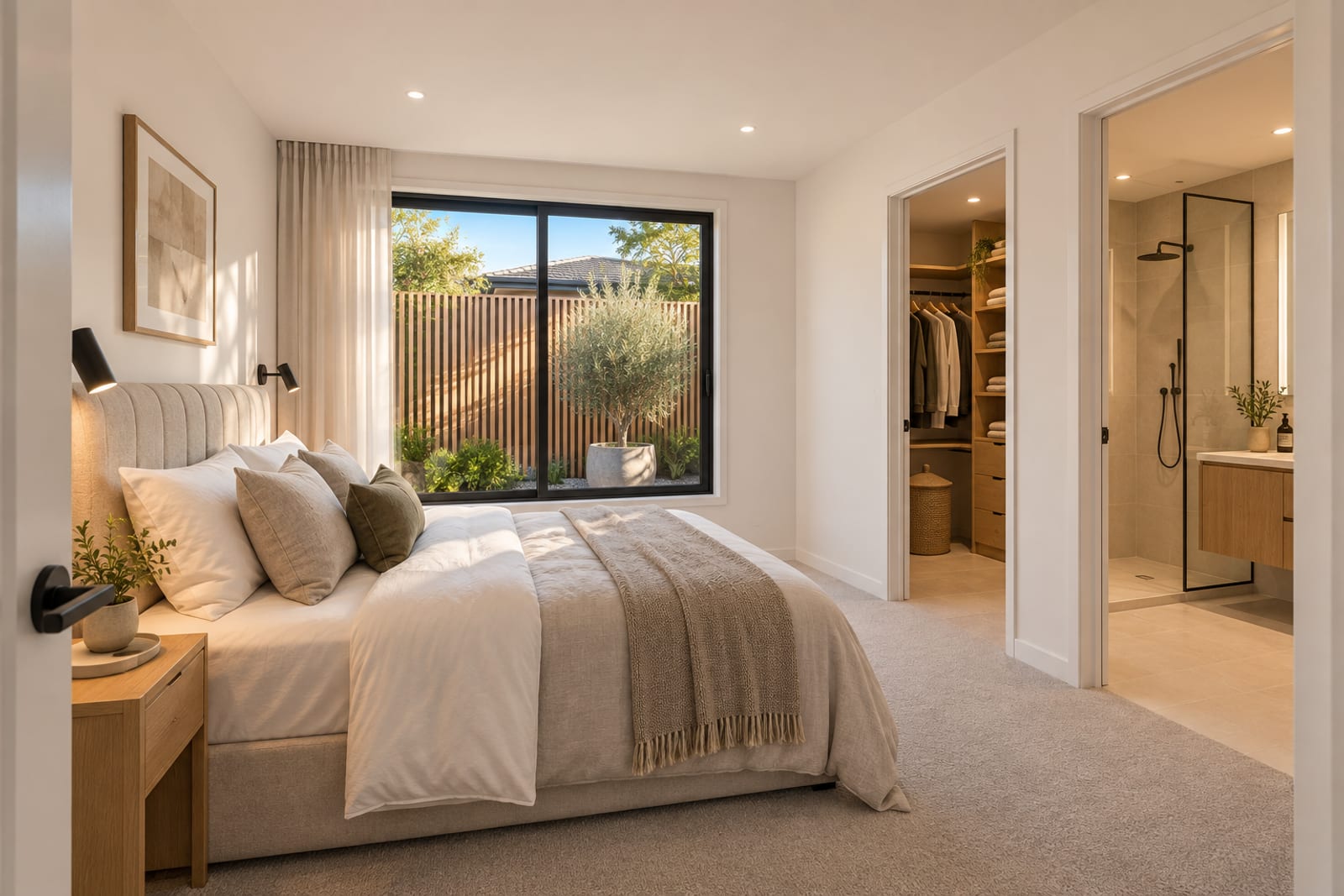

Master in the quiet north-west corner — Plan C

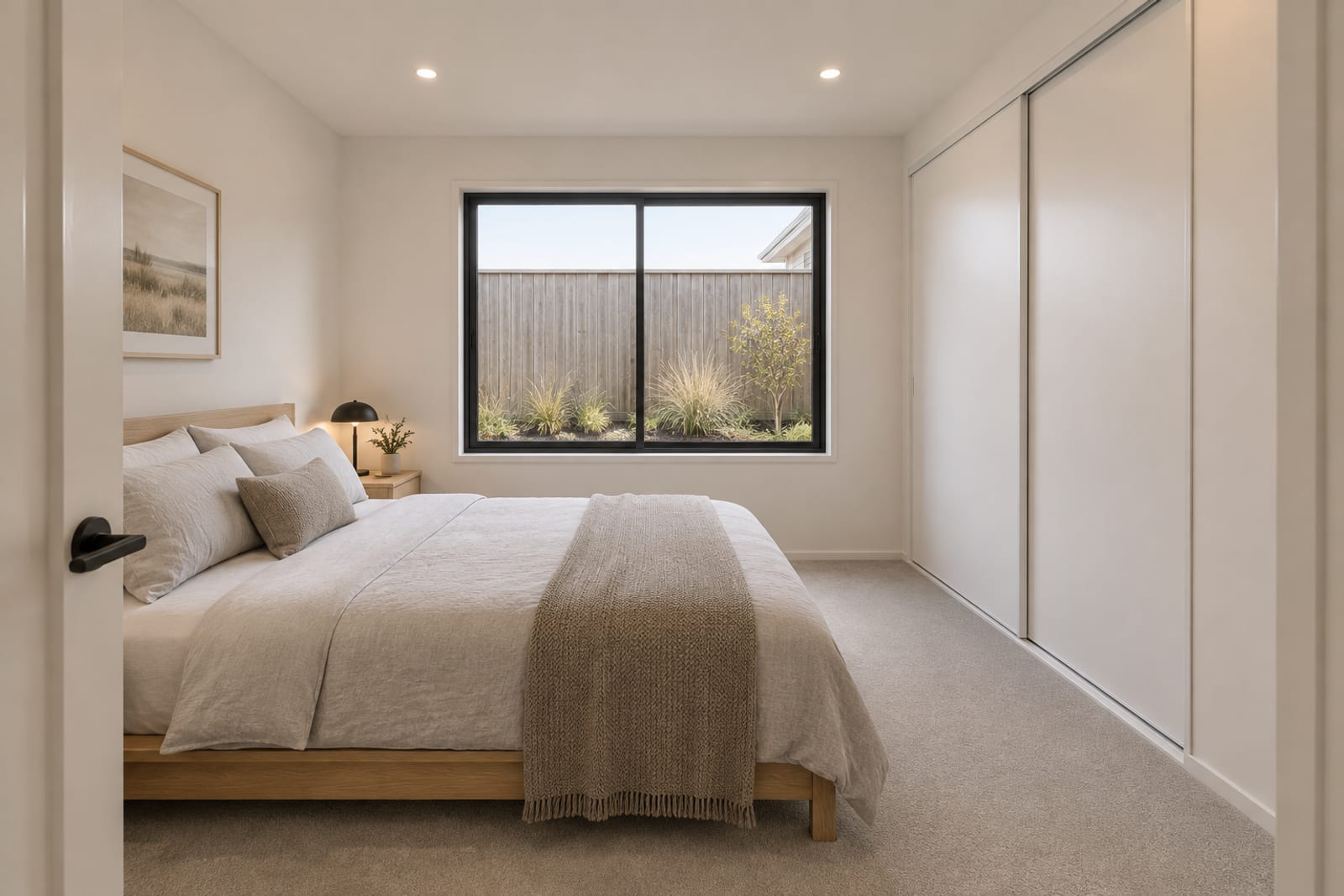

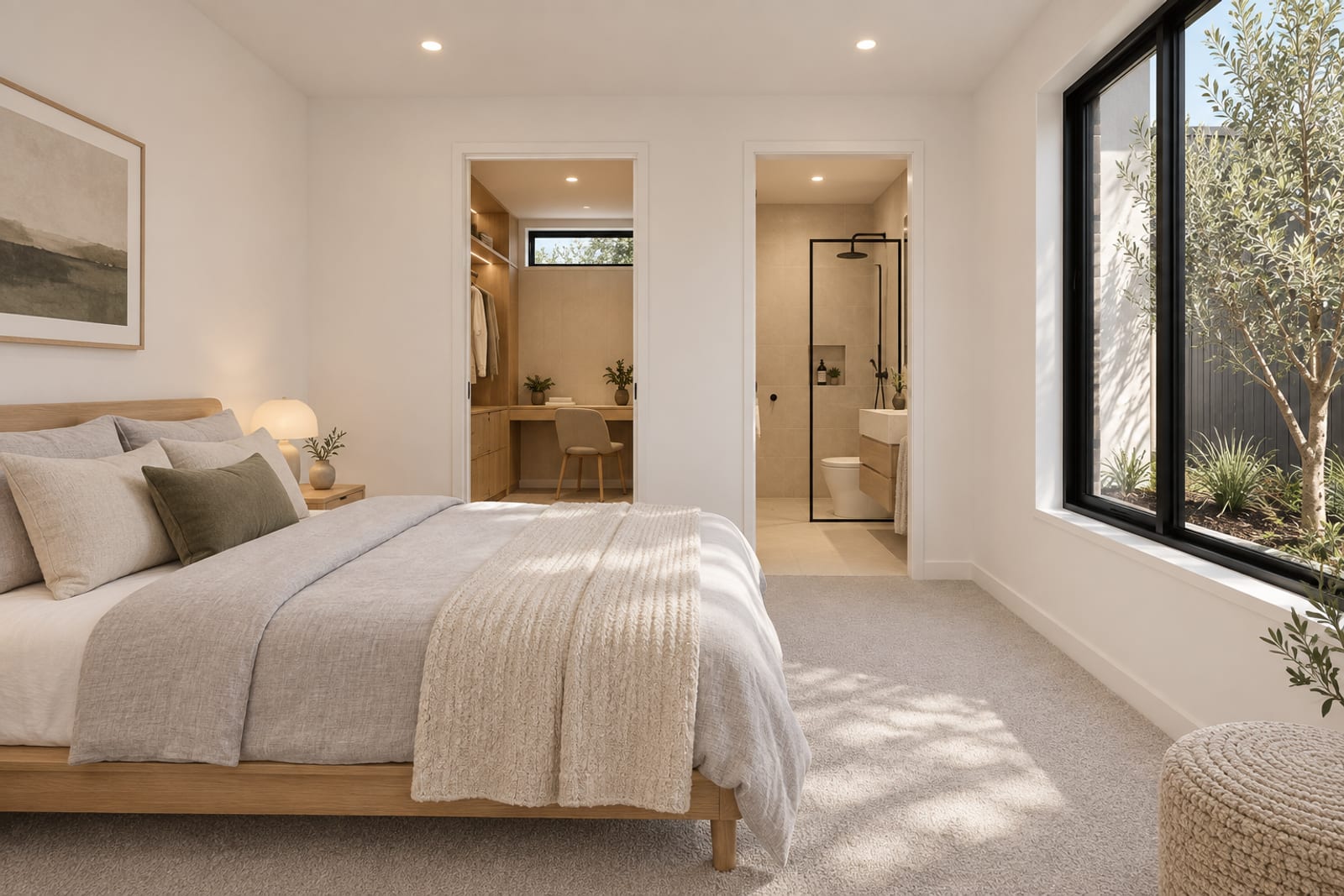

Bedroom 2 with its ensuite and nook — Plan C

Design renders — AI concept views

Follow the daily routes.

From the entry to the kitchen, bedrooms and garden. Select a route to see how it sits inside this plan.

Net internal area: 77.3 m²
Kitchen, dining and living: 38.0 m²

Routes show connections through the concept plan. Furniture clearances and accessible circulation need detailed design.

Resolve the levels with the site.

The same shell can be studied on different ground profiles. These sketches show the questions to resolve before a foundation and entry design is chosen.

Level ground

Level internal floor

Ground falls to the rear

Level internal floor

Ground rises to the rear

Level internal floor

Indicative terrain studies only. Surveyed levels, soil conditions, drainage, structure and the step-free entry route require site-specific design. The sketches do not specify a foundation system.

Prefab and factory

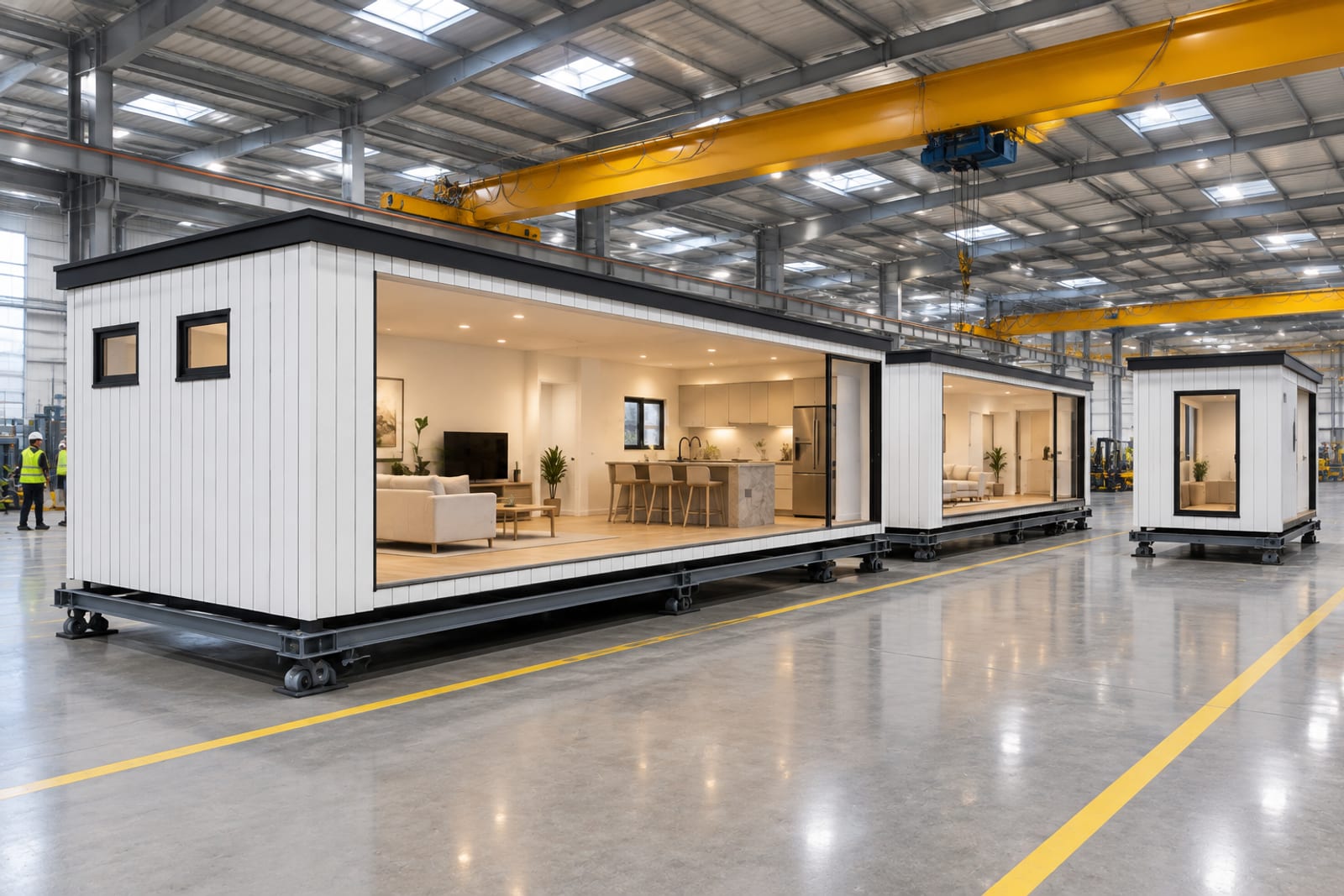

Two modules, one pod, one kit

The south module carries every wet room and the kitchen; the north module carries the bedrooms and the great room and has no plumbing; the bay is a pod; the garage is a flat-pack kit. That split keeps transport, craneage and factory work simple. With the truss roof, the modules travel flat-topped. Local trades fit the timber trusses, roof sheets, gutters and eave lining after the crane.

Module split

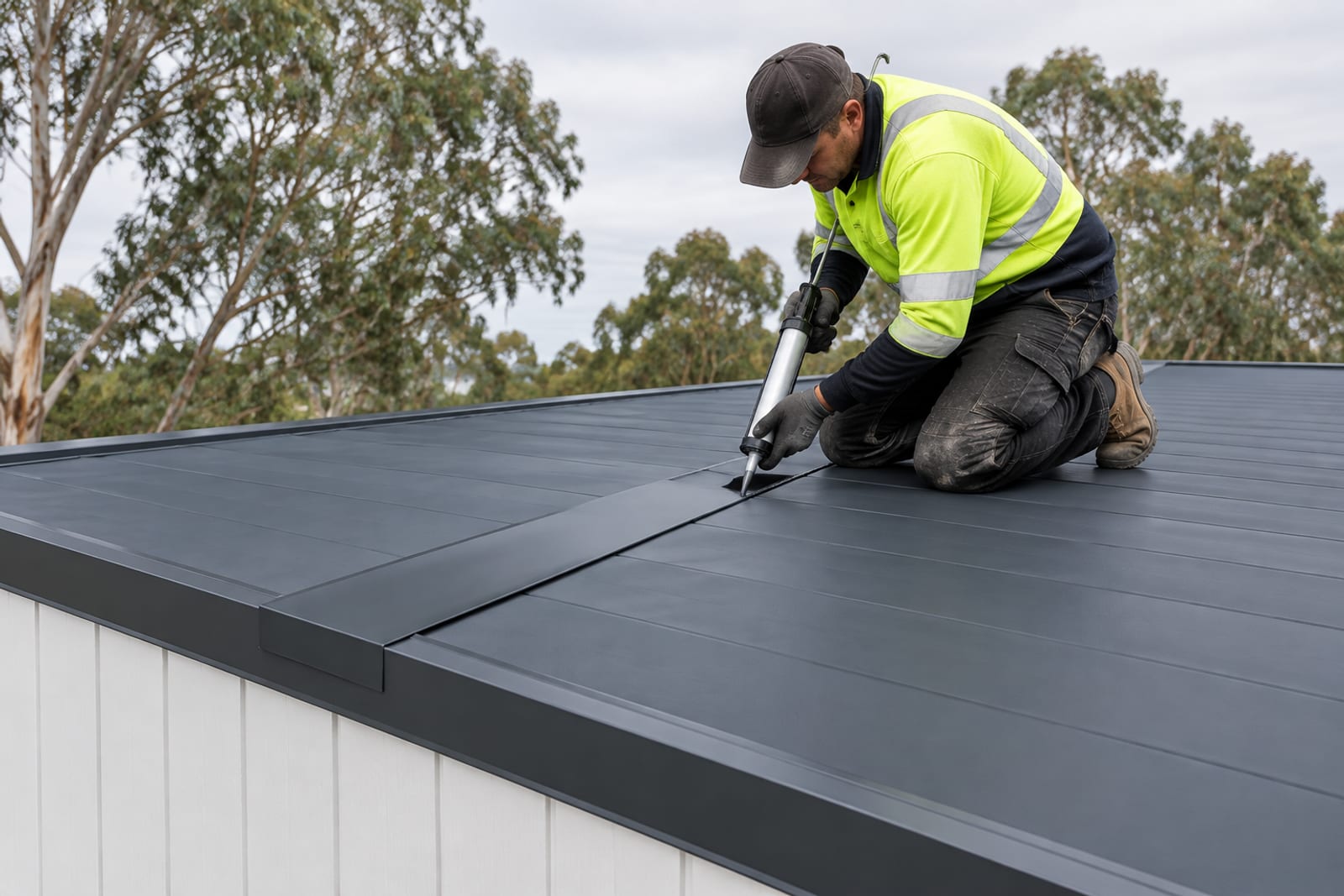

The joint runs along the spine wall at y = 3.65 m: a flashed roof seam, a floor cover strip, two wall junctions. Nothing structural crosses it.

Module 1 · southWet module
11.0 × 3.75 m, 3.5 m high
Portico, entry, bathroom with laundry, kitchen, master bedroom
All supply and waste plumbing except the ensuite. One stack at the bathroom / kitchen wall.
Module 2 · northDry module
11.0 × 3.85 m, 3.5 m high
Bedroom 2, great room, study, fireplace
Electrical and gas only. The flue and the sliding-door head are the only penetrations.

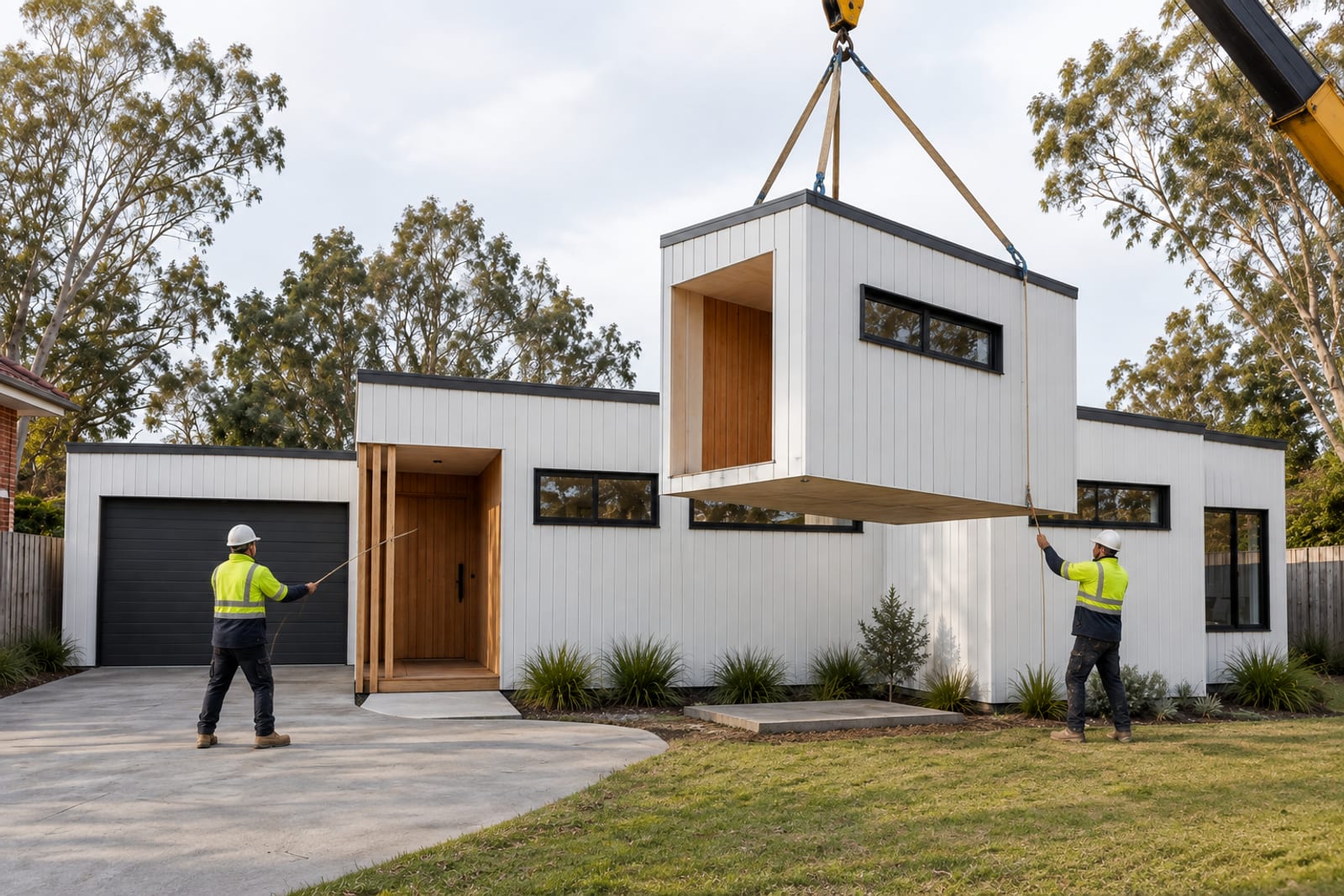

Bay podWet pod
3.1 × 2.8 m, 3.2 m high
Dressing room (or study nook), ensuite
Tiled and fitted in the factory; two doors into the bedroom behind it.
Garage kitDry kit
3.9 × 6.4 m
Single garage, meter board on the front wall, switchboard inside

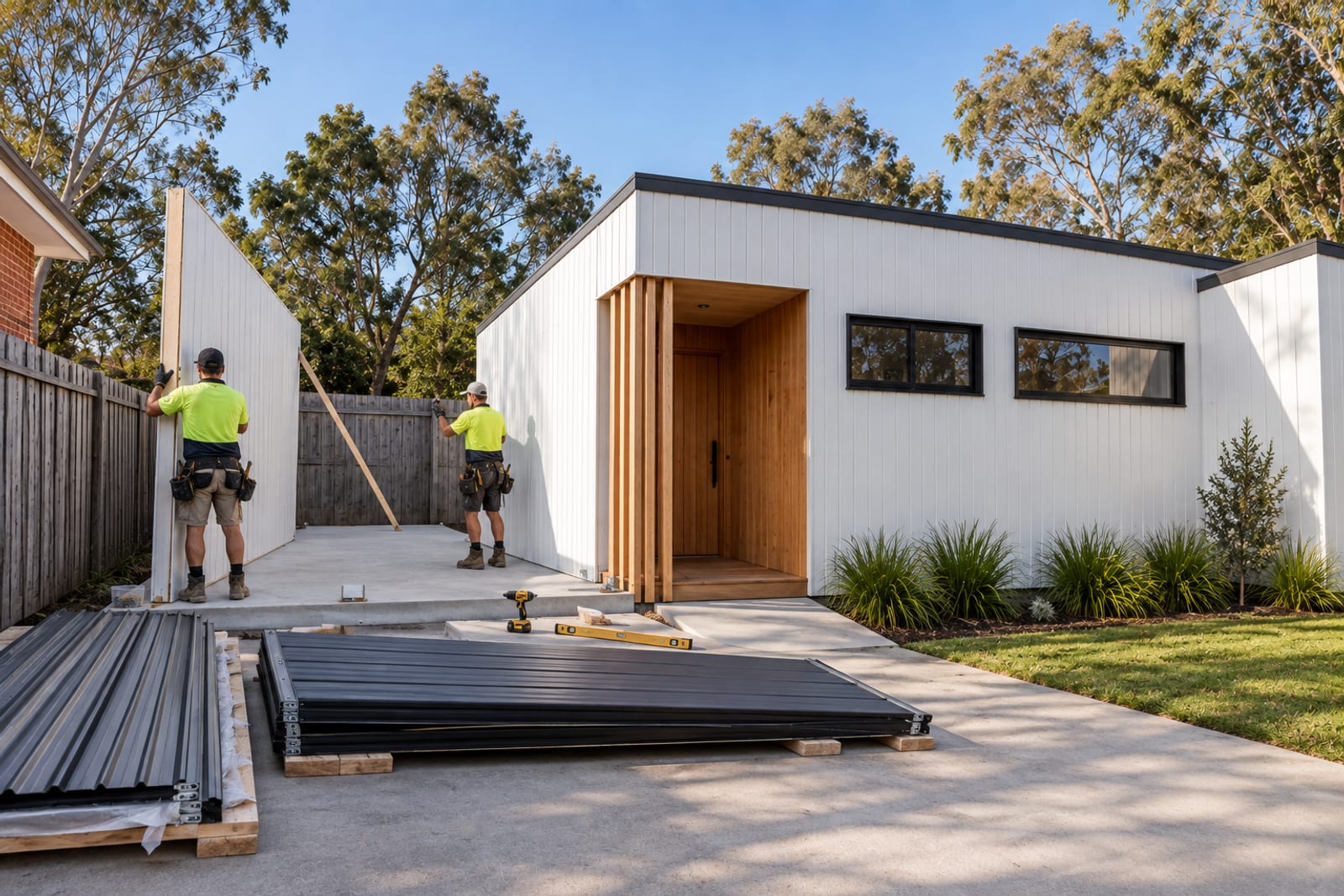

Panelised garage kit, assembled on site under its own lower hip roof and linked by a low covered canopy.

From slab to handover

01
Feasibility
Street width, overhead lines, crane position and the lift path over the front house. If the lift does not work, the same drawings are built as a kit.
02
Slab and services

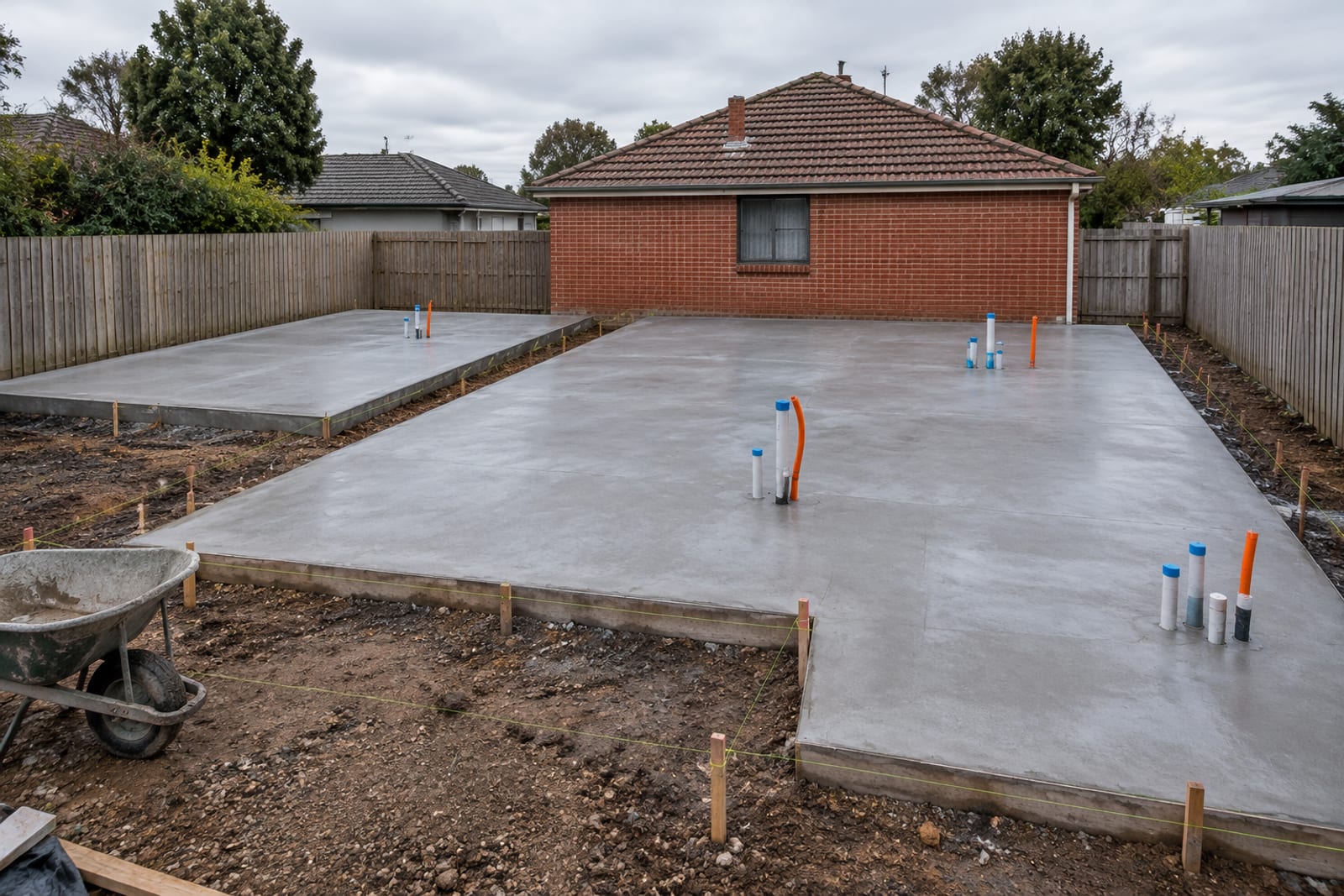

Slab poured, sewer, water and power brought to the module positions while the modules are built.
03
Factory build

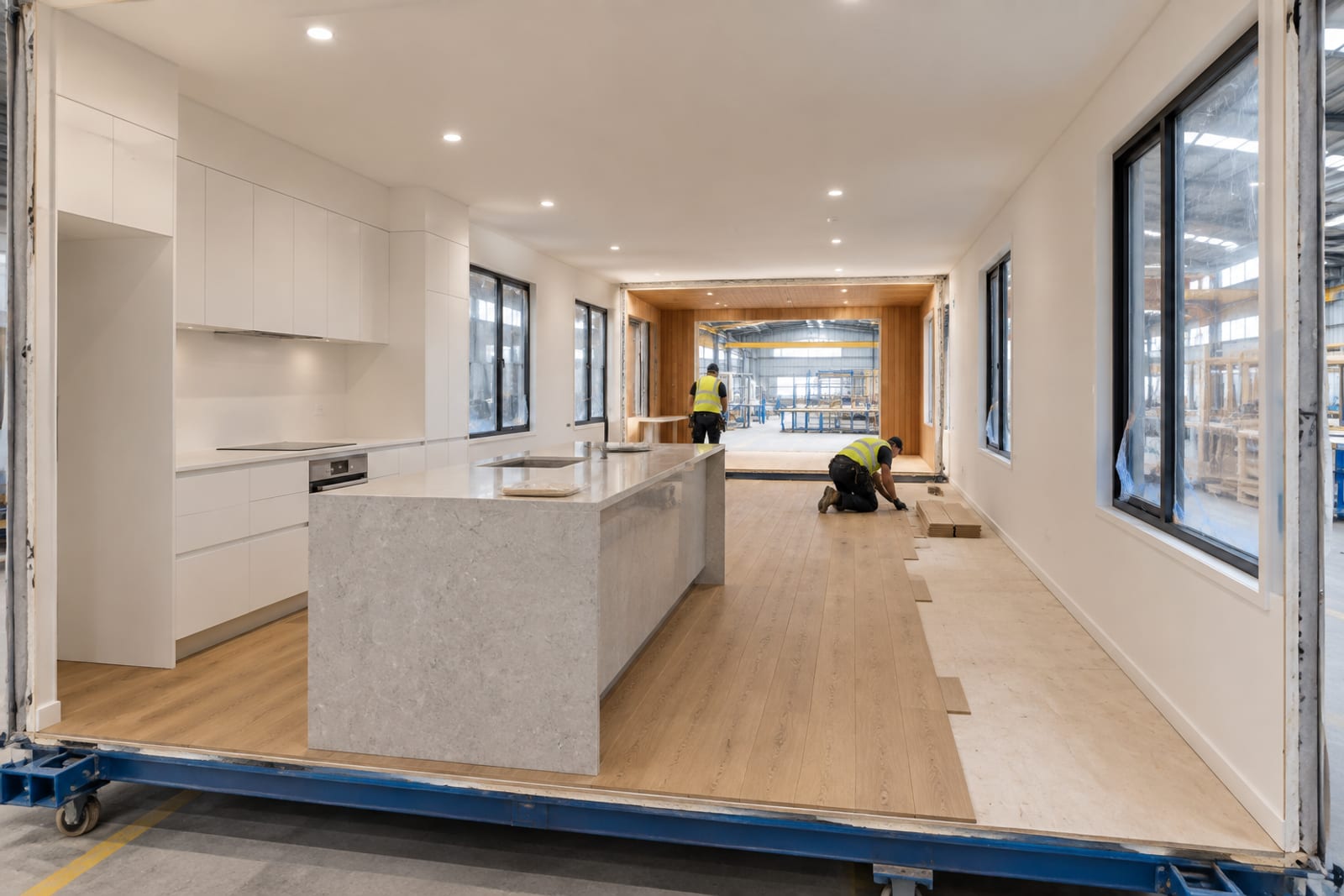

Frame, cladding, temporary flat roof, wet areas, joinery, electrical and paint indoors, with stage inspections. The final truss roof is installed on site.
04
Transport

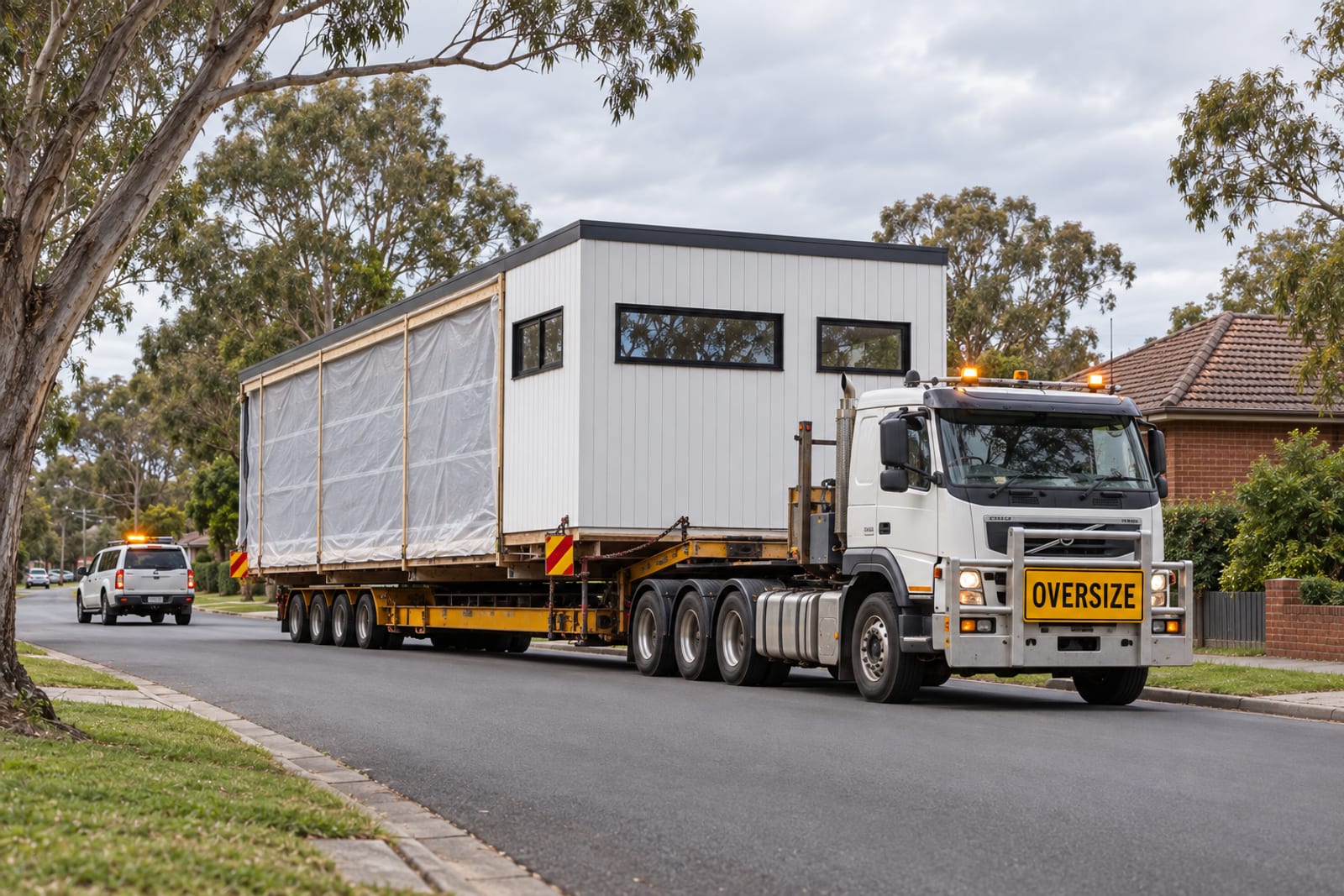

Two 11 m modules at 3.75 m wide under oversize permit with a pilot; the pod and the garage kit on a third truck.
05

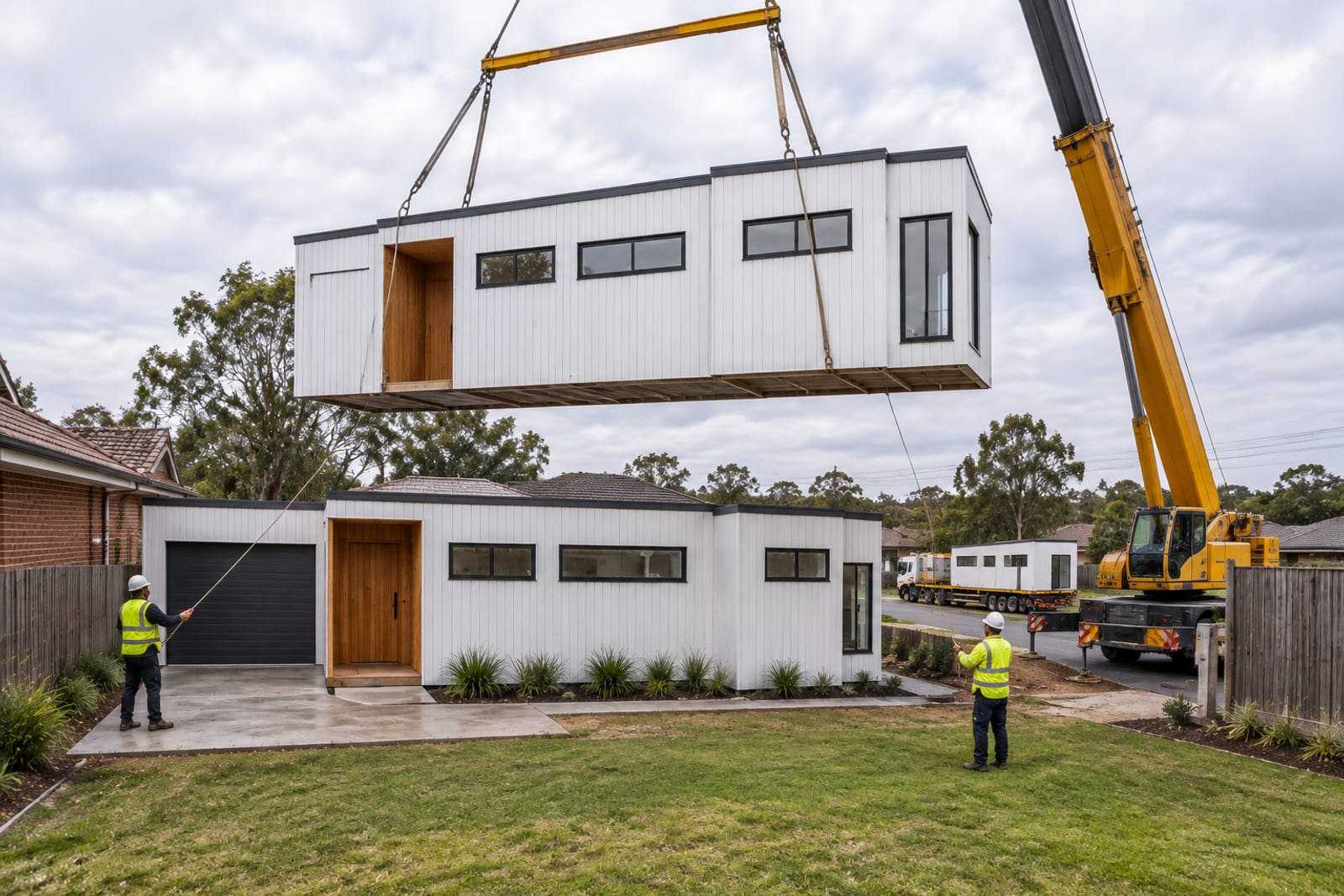

Crane day
Module 1, module 2, then the pod. Usually one day.
06
Connect and hand over
Roof seam flashed, floor strip laid, services connected, garage kit assembled, occupancy certificate.

What the factory receives

—Module envelopes: M1 and M2 at 11.0 × 3.75 m, 2.7 m floor-to-ceiling, flat-topped for transport; the truss roof is fitted on site; pod P1 at 3.1 × 2.8 m
—Wet-services schedule: bathroom (with laundry) and kitchen in M1 on one stack; ensuite in P1; nothing in M2
—Window and door schedule dimensioned from the module corner — identical in all three plans
—Internal wall set-out per plan, the only drawing that differs between A, B and C

Transport envelope

Module width: 3.75 m — oversize, permit and pilot
Module length: 11.0 m
Travel height: About 4.3 m on a low loader
Pod: 3.1 × 2.8 m, standard load
Garage: Flat-pack panels, standard load

Specification

The numbers behind the drawings

Areas

Main block, outer: 11.0 × 7.5 m = 82.5 m²
Bay, outer: 3.1 × 2.8 m = 8.7 m²
Dwelling, outer frame: 91.2 m²
Garage, outer / clear: 25.0 m² / 21.0 m² (3.5 × 6.0 m)
Dwelling + garage: 116.1 m² outer
Covered portico: 2.2 m², inside the frame
Ceiling height: 2.7 m throughout
Roof: Concept roof option: a 22.5° hipped Colorbond roof in dark Monument, timber trusses, 450 mm eaves and quad gutters. The garage has its own lower hip; the covered link stays flat. Structure and drainage require project design.

Window and door schedule

Tag	Room	Face	Size (w × h)	Sill	Note
D01	Entry	South, in the portico	1000 × 2100	—	Solid timber, black lever handle
D02	Garage	South, garage front	2750 × 2100	—	Sectional panel door, matte charcoal
D03	Living	East	2800 × 2400	0	Double-glazed sliding door to the deck
W01	Bathroom	South	1900 × 900	1500	Highlight, obscure glass
W02	Kitchen / dining	South	2300 × 900	1500	Highlight
W03	Ensuite	South, bay front	2300 × 900	1500	Highlight, obscure glass
W04	Ensuite	East, bay side	1800 × 900	1200	Obscure glass
W05	Master / bedroom 2	East	2000 × 1500	900	To the screened courtyard
W06	Living	North	1100 × 1500	900	East of the fireplace
W07	Living	North	1100 × 1500	900	West of the fireplace
W08	Study / kitchen	North	1600 × 1500	900	Desk window in A and B, sink window in C
W09	Bedroom 2 / master	North	1600 × 1500	900
ID	Internal	—	820 × 2040	—	Bathrooms 720; study slider 1000 glazed

Finishes and services

Structure: LVL or Z275 galvanised steel frame on an engineered concrete slab (a raised steel subfloor in Queensland)
Insulation: R2.7 walls, R6.0 ceiling, sarking to walls and roof
Internal walls and ceilings: 10 mm plasterboard, wet-area board in bathrooms, flush 2.7 m ceilings
Floors: Engineered oak to living areas and bedrooms; 1200 × 600 porcelain to wet areas
Kitchen: Full-height pantry, integrated fridge space, 60 cm induction and concealed rangehood, silica-free stone-look benchtop; 3.2 m bench + 2.4 m island (A, B) or L-kitchen + 2 m island (C)
Bathrooms: Walk-in showers with fixed glass panels, wall-hung toilets, floating vanities, black tapware, 1200 × 600 tiles floor and wall
Laundry: Stacked washer and dryer in the main bathroom, tap and waste on the wet-module stack — no laundry in the hall
Fireplace: Slim balanced-flue gas fireplace in a stone panel on the north wall; electric option where gas is not connected
Heating and cooling: Split-system air conditioning to the great room and both bedrooms; 160 L heat-pump hot water on the north side
Electrical: LED downlights, three power points per room and one data point in the living room, meter board on the garage front, switchboard in the garage

Planning fit

Drawn to the standards, not around them

At 91 m² House CC is above the 80 m² small-second-dwelling limit set by Amendment VC306 on 15 October 2026, so it is a full second dwelling and a two-dwelling site goes through a planning permit assessed against Clause 55, the Townhouse and Low-Rise Code in force since 31 March 2025. The plan was drawn to that code’s deemed-to-comply standards. Every site is still assessed individually; nothing here is an approval.

Standard	What it asks	How the plan answers it, Scenario 1
Permit trigger	A second dwelling that is not a small second dwelling (over 80 m² since VC306) needs a planning permit.	Two dwellings on 576 m², assessed under Clause 55. The small-second-dwelling pathway (80 m² or less, measured to the outside of the walls) is a different product.
B2-3 Side and rear setbacks	Single-storey walls: at least 1 m from side and rear boundaries.	Rear wall 2.0 m (1 m easement + 1 m buffer); east wall 3.1 m.
B2-4 Walls on boundaries	10 m + 25% of the remaining boundary; average 3.2 m, max 3.6 m high.	The garage is shown in the selected development layout. Its height, wall length and boundary conditions require review in the detailed design for the selected roof and the actual site.
B2-5 Site coverage	65% in GRZ, 60% in NRZ.	80 + 22 + 91 + 25 = 218 m² = 38% of 576 m².
Minimum garden area	30% for a 501–650 m² lot in GRZ / NRZ; driveways and courts do not count. Mandatory.	About 236 m² of garden remains — about 41%.
B2-7 Tree canopy	10% of a lot of 1,000 m² or less; one tree in the front and one in the rear setback.	58 m²: one Type B tree in the front setback, Type A trees in the side strip; the rear tree sits at the north end of the open space because the 2 m strip is too narrow for deep soil.
B3-2 Parking location	Habitable windows within 1.5 m of a shared accessway: sill at 1.5 m or a 1.5 m solid fence.	Every window facing the court is a highlight with a 1.5 m sill.
B3-4 Entry	A ground-level door with a line of sight from the accessway, not through a garage, under 1.44 m² of cover.	The corner portico is visible from driveway and court, sits beside the garage, covers 2.2 m².
B3-5 Private open space	25 m² secluded, at least 3 m wide, off a living area.	3.1 × 11.4 m = 35 m² off the sliding door.
B3-6 Solar access	Open space set back (2 + 0.9 h) m from any wall to its north.	The strip has no wall to its north.
B3-7 Functional layout	Main bedroom at least 3 × 3.4 m; other bedrooms 3 × 3 m.	Master 3.2 × 3.4 m (A, B) or 3.2 × 3.6 m (C); bedroom 2 at least 3.2 × 3.0 m clear.
B5-5 Waste	1.8 m² individual bin store, 0.8 m deep, or a shared store.	0.8 × 2.3 m store on the west strip beside the garage front, screened from the court.
Clause 52.06 Car parking	One space for a two-bedroom dwelling; a single garage 3.5 × 6 m clear.	Garage 3.5 × 6.0 m clear, end-on to the driveway.

Scenario 2 differences

Four dwellings on 1,020 m² change two numbers: garden area rises to 35% (lot over 650 m²) and canopy doubles to 20% (lot over 1,000 m²) — hence the 6 m front setback, the 4 m mid gap and the 3 m side strips. Meeting every standard with the zone as the only permit trigger removes third-party review at VCAT under the current code; an overlay or one unmet standard brings the merits assessment back.

These notes describe what the plan was drawn to. They are not a planning assessment of any lot and not a promise that a permit will be granted.

Buyers and tenants

Plans and interiors first; the walk-around for the outside.

Floor plans

The factory

Module split, window and door schedule, finishes. Openings never move between plans.

Prefab

Delivery partners

Site fit for slab, clearances and services; the crane path is the first feasibility item.

Site fit

Co-investors

One shell for two kinds of site; one drawing set; the standards it was drawn to.

Planning

One design, a coordinated delivery.

The handbook connects the plan, materials, factory and site team around the same shell.

Design and documentation

Keep the selected plan, window schedule, roof and cladding aligned in the project documentation.

Factory and supply chain

Coordinate module joints, finishes, protection and transport around the approved project scope.

Australian delivery

The registered building team coordinates site works, installation, inspections and handover.

Project feasibility

Assess the actual property, development layout and complete project budget before proceeding.

Concept handbook. A proposal for a specific property sets out scope, responsibilities, approvals and costs.

FAQ

Is House CC a granny flat?

No. At 91 m² it is above Victoria’s 80 m² small-second-dwelling limit (Amendment VC306, 15 October 2026), so on a backyard lot it is a second dwelling assessed under Clause 55 with a planning permit. It has a garage, two bathrooms and a master suite — a small house, not a granny flat.

Why is the living room 38 m² when the whole house is 92 m²?

No corridor, and the bathroom, laundry tower and kitchen packed into one south band. Bedrooms take 22 m², bathrooms and the dressing room 12 m², the entry 5 m². The rest is the great room.

Why are the front windows so high?

The court in front is a vehicle area shared with the front house. The code asks for a 1.5 m sill on habitable windows within 1.5 m of a shared accessway, so the three court-facing windows are highlights. The rooms that need the view look east.

Does the garage have a door into the house?

No, deliberately. A detached kit can sit beside the house on a backyard lot or between two houses in a row, and a low covered link connects it visually to the house. If a site wants an internal door, the entry hall’s west wall is where it goes.

How does it arrive?

Two 11 × 3.75 m modules, a 3.1 × 2.8 m bay pod and a flat-pack garage kit, craned onto a pre-poured slab in about a day. Where a crane cannot reach, the same drawings are built as a kit on site.

Which plan should I pick?

A for the biggest great room; B for a real office with a door; C for a square lounge and a second bedroom with its own ensuite. We do not publish rent or price figures on this site — the proposal for a specific address carries them.

Put House CC on your lot

Send the address. The feasibility read tells you whether the shell fits, which scenario applies, which approval pathway the site takes and whether the crane can reach.

CC-A · Plan A · Hearth
